Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
3.
RIO5 REMOTE MODULES. (CANOPEN PROTOCOL).
Power supply.
ꞏ32ꞏ
REF. 2107
3.2 Power supply.
The power supply must be powered at 24 Vdc and connected to the CAN bus of the system.
There are two power supply models.
• Power supply with 24 digital inputs and 16 digital outputs.
• Power supply with 4 analog inputs, 4 analog outputs and 2 inputs for temperature
sensors.

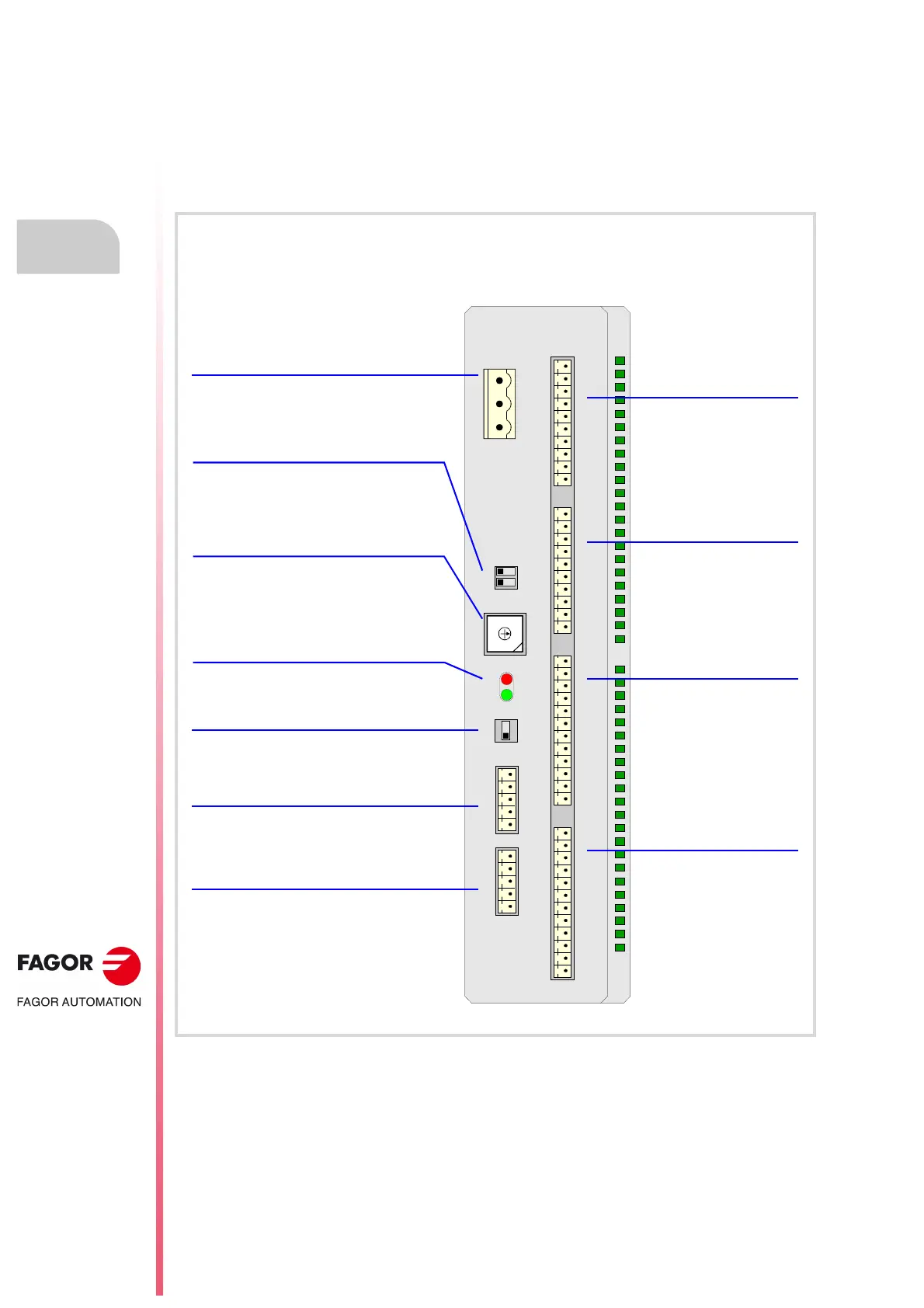

Connector ꞏX1ꞏ.
Power supply.
Power supply with digital inputs and
digital outputs.
GND
L
SH
SH
H
X3
GND
L
SH
SH
H
X2
CAN
POWER 24I/16O
ERR
RUN
X4
X5
X6
X7
I13
I24
I1
I12
GND
O16
O9
+24V
GND
O8
O1
+24V
X1
CHS
GND
+24V
4
0
1
F
E
D
C
B
A
9
8
7
6
5
3
2
ADDRESS
SPEED
1
0
LT
1
0
CAN bus. ꞏSPEEDꞏ selector.
CAN bus transmission speed.
CAN bus. ꞏADDRESSꞏ selector.
Address (node) of the element within the CAN
bus.
CAN bus. Leds.
Status indicators.
CAN bus. ꞏSTꞏ selector.
Line terminating resistor.
CAN bus. Connector ꞏX2ꞏ.
CAN bus connection.
CAN bus. ꞏX3ꞏ connector.
CAN bus connection.
Connector ꞏX4ꞏ.
8 digital outputs.
Connector ꞏX5ꞏ.
8 digital outputs.
Connector ꞏX6ꞏ.
12 digital inputs.
Connector ꞏX7ꞏ.
12 digital inputs.
