RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Power supply for the module.
ꞏ107ꞏ
REF. 2107

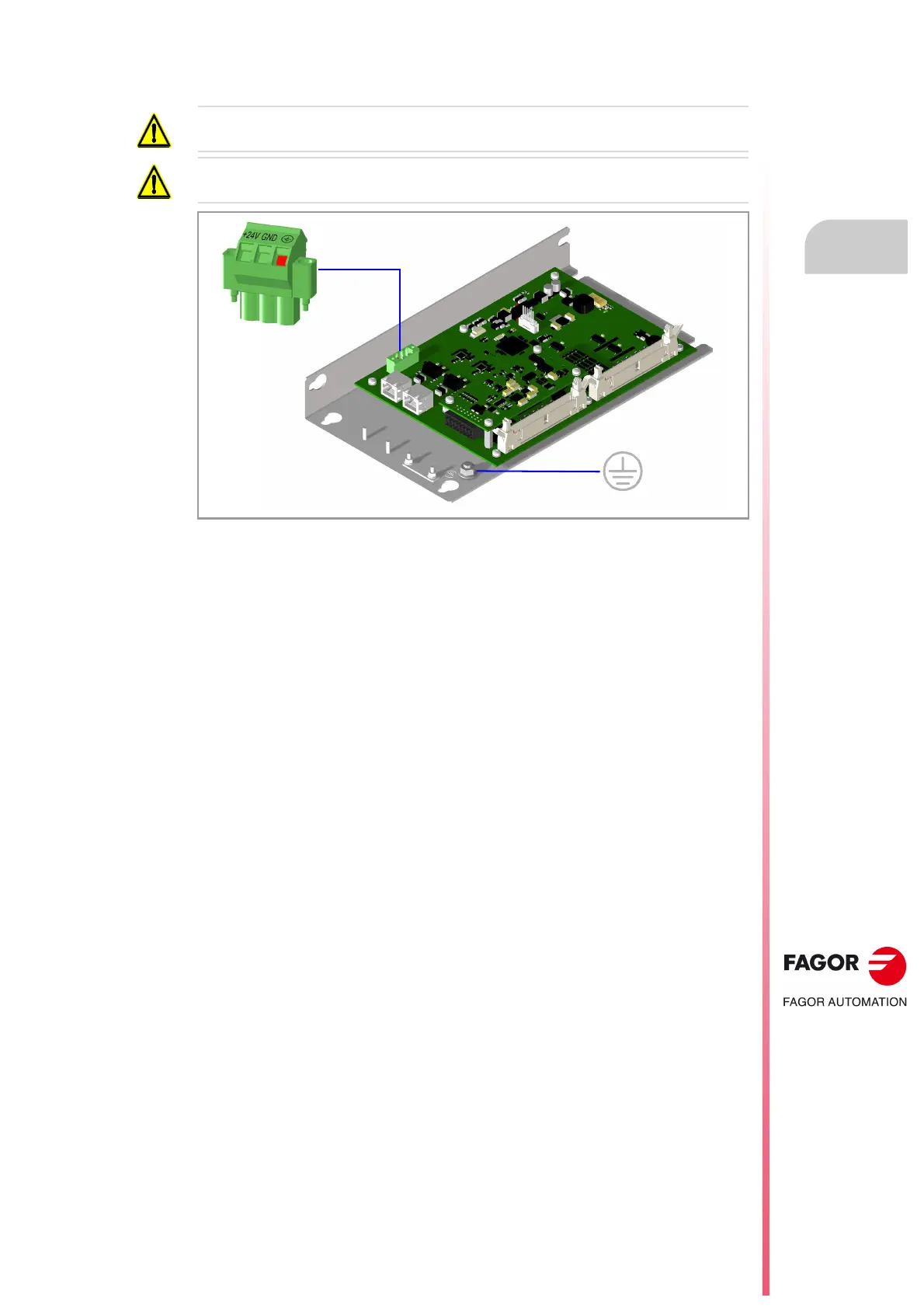

6.4 Power supply for the module.
6.4.1 Voltage supply at 24 V DC.
• Universal DC power supply. Use a regulated 24 V DC power supply (between -15% and
+20%) (including voltage ripple and noise).
• The unit must be powered with class DVC A power supply with a SELV/PELV protection
output voltage.
• For all connections and terminals of electronic modules, use only power supplies that
provide SELV (Safety Extra Low Voltage) or PELV (Protective Extra Low Voltage) output
voltages.
Power supply cable characteristics.
Use generic cable 12 AWG to 24 AWG.
6.4.2 Protection against over-voltage and reverse voltage.
The module is also protected against reverse connection to the power supply.
Do not make any connections when the module is powered. Disconnect the power to the module before
making a connection.
Do not connect the module to a power supply that is turned on. Before connecting the module, turn
the power supply off by unplugging the power cable.
