Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
5.
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (CANOPEN).
Description of connectors.
ꞏ92ꞏ
REF. 2107

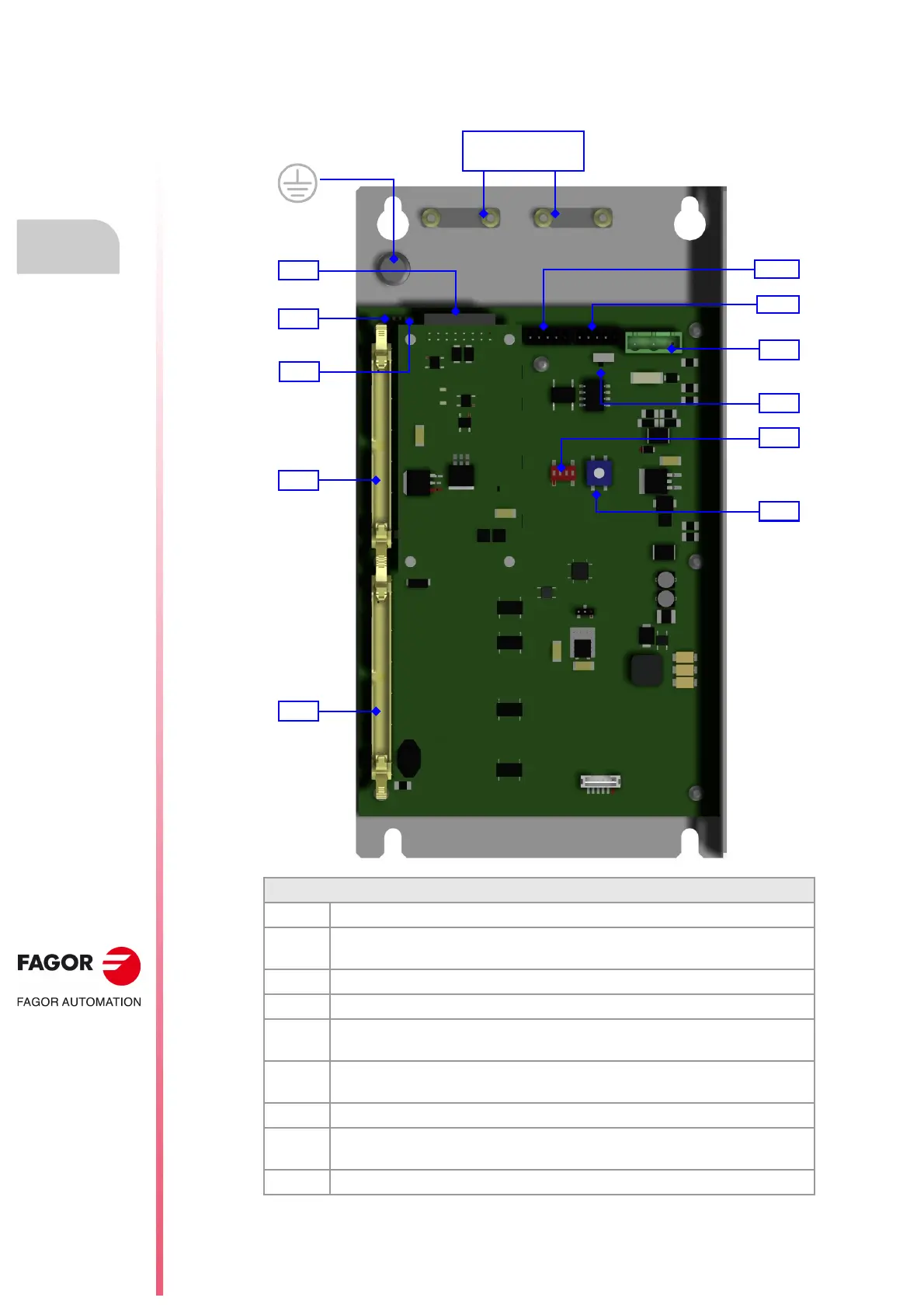

5.4 Description of connectors.
Connector.
ꞏA22ꞏ 24 V DC supply input.
ꞏB28Aꞏ
ꞏB28Bꞏ
CAN bus.
ꞏD45ꞏ RUN led, module status indicator.
ꞏD46ꞏ ERR led, transmission status indicator.
ꞏI44Aꞏ
ꞏI44Bꞏ
Digital inputs and outputs.
ꞏI48ꞏ Analog inputs and outputs (only in RIOR-48I32O-ANALOG).
Analog inputs for temperature sensors (only in RIOR-48I32O-ANALOG).
ꞏS41ꞏ CAN bus. Address (node) of the element within the bus.
ꞏS42ꞏ CAN bus. Address (node) of the element within the bus.
CAN bus. Selecting the speed for the CANopen bus.
ꞏS43ꞏ CAN bus. Line terminating resistor.
I44A
I44B
Ground plate
B28B
B28A
D46
D45
A22
S42
S41
S43
I48
