Fagor CNC 8058elite T User Manual

Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.
RIOW-8DI module. Module of 8 digital inputs.
ꞏ71ꞏ
REF. 2107

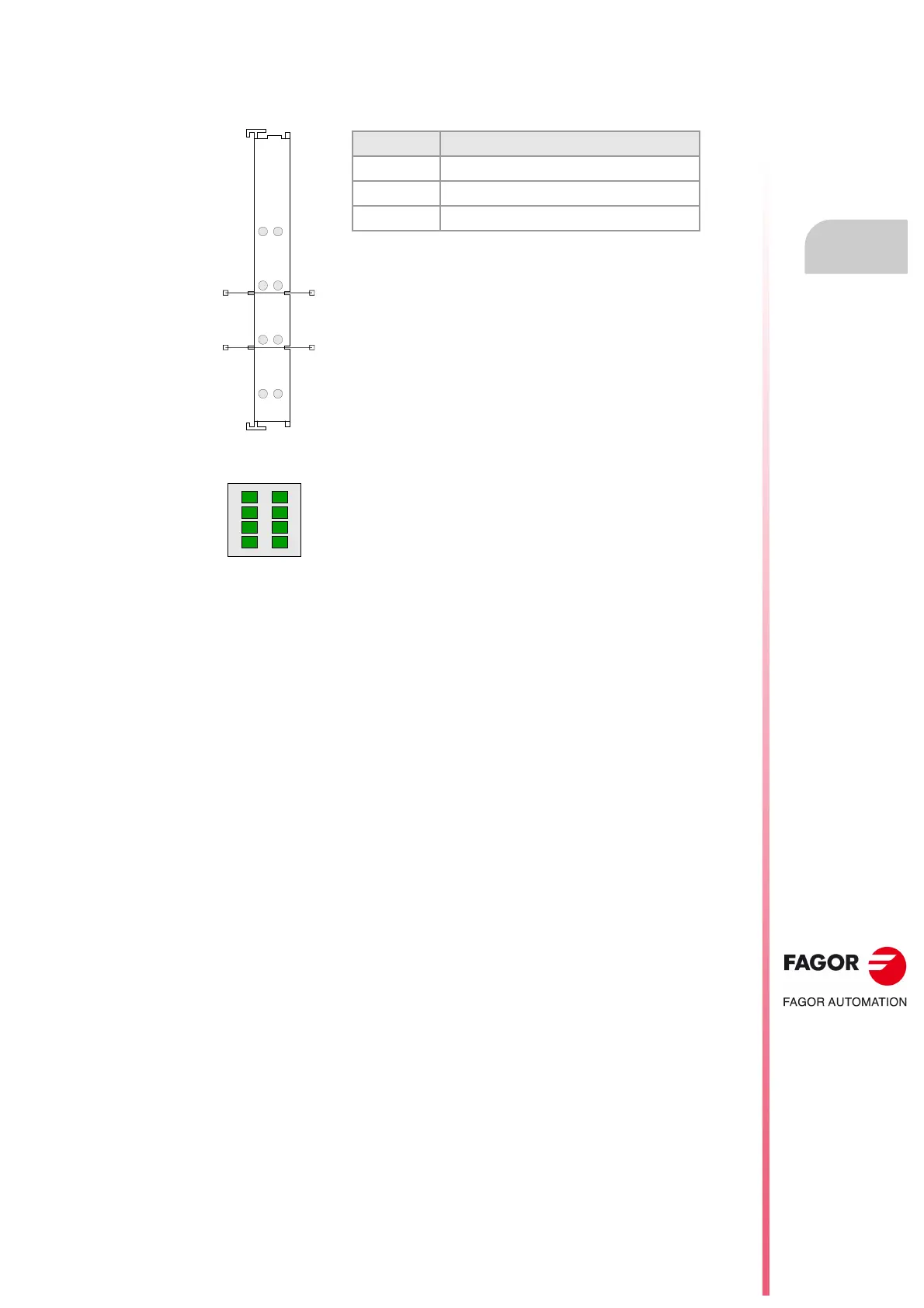

4.7.1 Elements (connectors).
Digital inputs (8 inputs).
Status indicator LED's.
Green LED's. All digital inputs have a status indicating LED that
turns on when the input is active.
DI1
DI3
DI5
DI7
DI2
DI4
DI6
DI8
24 V
0 V
Signal Function
24 V Power supply.
0 V Power supply.
DI1 - DI8 Digital inputs.
A
B
C
D
E
F
G
H
DI1
DI3
DI5
DI7
DI2
DI4
DI6
DI8
