DRAFT DRAFT DRAFT DRAFT DRAFT
DRAFT DRAFT DRAFT DRAFT DRAFT
Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Enclosure and securing of the modules.
ꞏ106ꞏ
REF. 2107
6.3 Enclosure and securing of the modules.
6.3.1 Ambient characteristics of the cabinet.
The RCS-S family modules must be installed inside an electrical cabinet with a protection
rating of IP54 or higher (EN 60529 compliant). The ventilation for the electrical cabinet must
be enough to dissipate the heat generated by all the devices and components working inside.
The interior temperature of the cabinet must not exceed 55 ºC (131 ºF) while the equipment
is running.
6.3.2 Cabinet design.
The enclosure must meet the following requirements:
Protection degree: IP 54 minimun (according to EN 60529).
Protection degree: IK 08 minimun (according to IEC 62262).
Enclosures complying with UL 50 and/or UL 50E and CSA C22.2 Nos. 94.1 or 94.3 for
the intended application, need not be subjected to the applicable requirements in this
standard. Non-metallic materials of enclosures complying with the above standards,
relied upon for containment of fire within the equipment, shall have a minimun
flammability rating of V-1.
6.3.3 Securing the module.
The RIOR-E module may be mounted onto the electrical cabinet in two positions; parallel
to the cabinet with 4 mounting points or perpendicular to it with two mounting points. Use
M6 bolts to secure the modules.

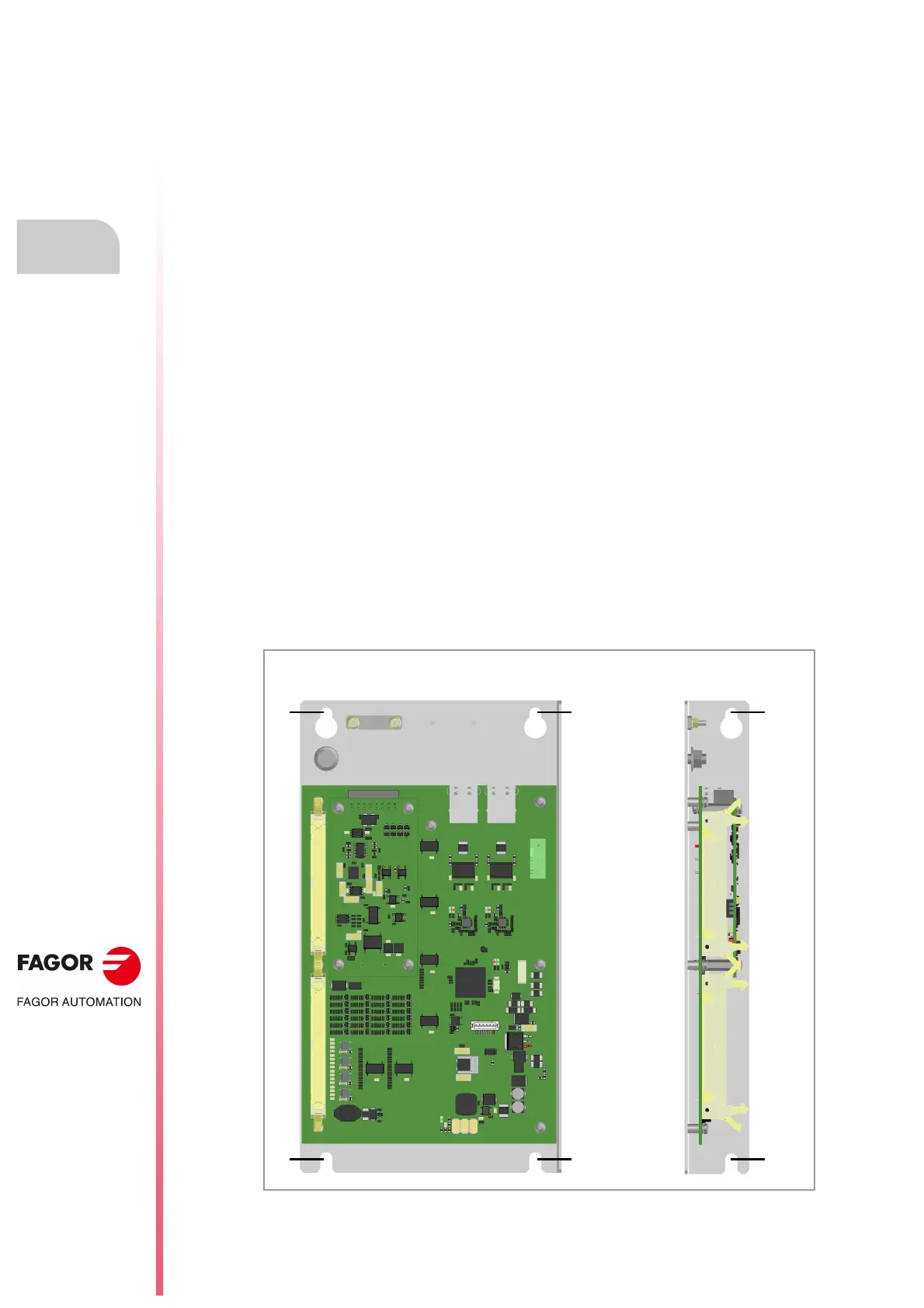

Mounting parallel to the cabinet. Mounting perpendicular to the
cabinet.
(1)
(3)
(2)
(4)
(1)
(2)
