RIOW REMOTE MODULES. (CANOPEN PROTOCOL).
4.
Numbering of the analog inputs and outputs and of the temperature
sensor inputs.
ꞏ83ꞏ
REF. 2107
4.14 Numbering of the analog inputs and outputs and of the temperature
sensor inputs.
The CNC numbers the modules automatically according to the logic order of the remote
groups. Within each group, they are ordered from left to right.
When numbering the analog inputs, the CNC considers the inputs for the temperature sensor
as analog inputs. The CNC machine parameters must be set to indicate the number of PT100
inputs and to which analog inputs they are connected. A PT100 input is active if it has one
of these temperature sensors connected to it. Refer to the installation manual for further
detail.
48
15
26
37
C
A
D
B
56781234
ON
STOP
RUN
TX
RX
Overflow
I/O
24V 0V
48
15
26
37
C
A
D
B
56781234
ON
STOP
RUN
TX
RX
Overflow
I/O
24V 0V
48
15
26
37
C
A
D
B
4AI 2AI 4AI
PT100
GROUP = 2GROUP = 1
48
15
26
37
C
A
D
B
2AI
48
15
26
37
C
A
D
B
48
15
26
37
C
A
D
B
PT100
48
15
26
37
C
A
D
B
48
15
26
37
C
A
D
B
48
15
26
37
C
A
D
B
48
15
26
37
C
A
D
B
48
15
26
37
C
A
D
B
4AO
48
15
26
37
C
A
D
B
4AO
Group ꞏ1ꞏ Group ꞏ2ꞏ
4 + 4 analog inputs. 4 analog inputs.
4 analog inputs. 2 PT100 inputs.
2 PT100 inputs.

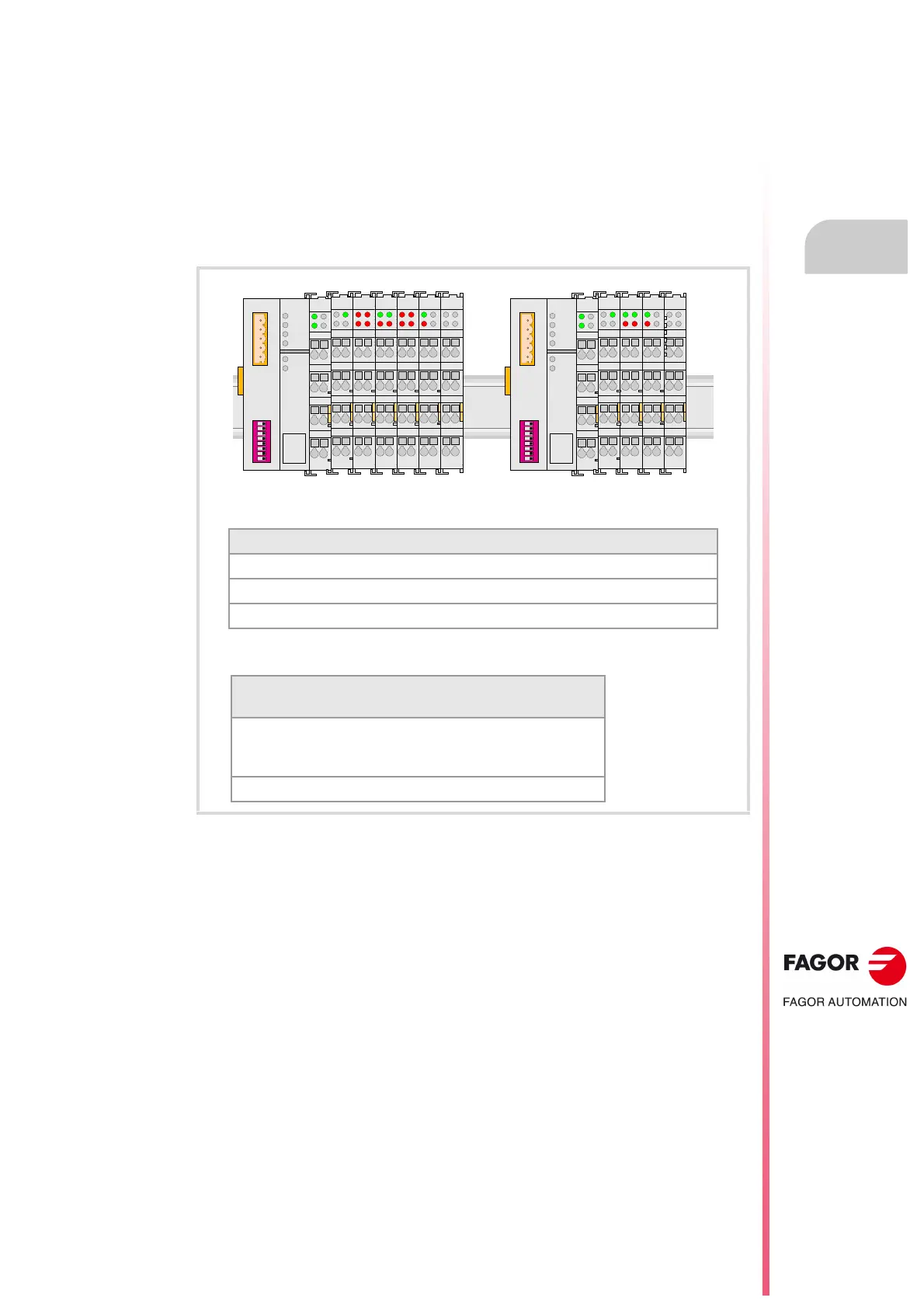

Example.
Group ꞏ1ꞏ
(address = 1)
Group ꞏ2ꞏ
(address = 2)
Analog inputs.
PT100 inputs.
Analog inputs.
1 ꞏꞏ 4
5 ꞏꞏ 6
7 ꞏꞏ 10
11 ꞏꞏ 12
Analog outputs. 1 ꞏꞏ 4 5 ꞏꞏ 8
