MPC-6000 / MPC-7000 / RND-2 INSTALLATION, OPERATION AND MAINTENANCE MANUAL
35

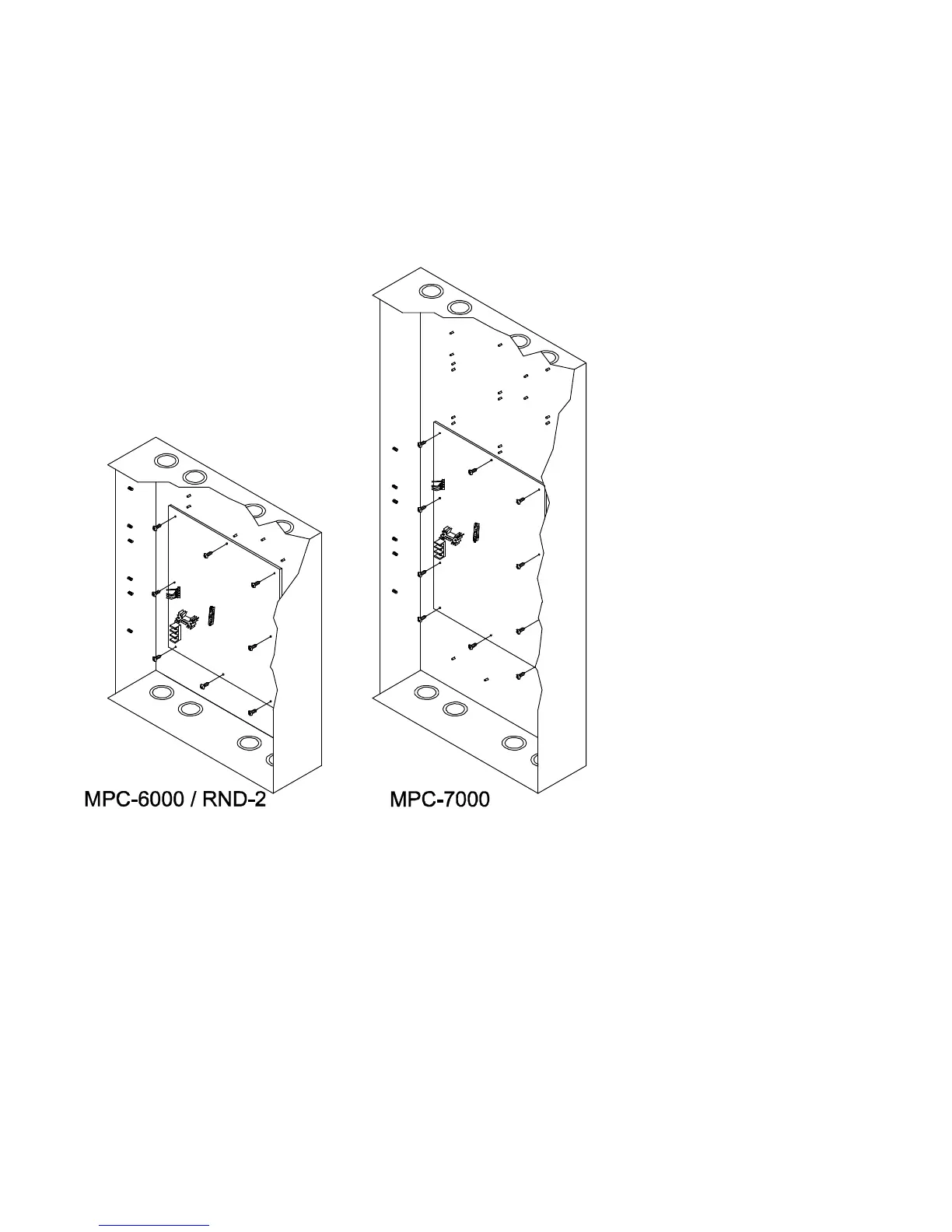

Main Board Installation – P/N MPC6-MB / MPC6-MB2 / MPC7-MB
 Secure the board to the back of enclosure using the provided #6-32 x 1/4 screws (P/N 906-
220604). (Eight for the MPC6-MB and ten for the MPC7-MB.)
 AC Input terminals must be located at the left side of the enclosure.
