MPC-6000 / MPC-7000 / RND-2 INSTALLATION, OPERATION AND MAINTENANCE MANUAL
37

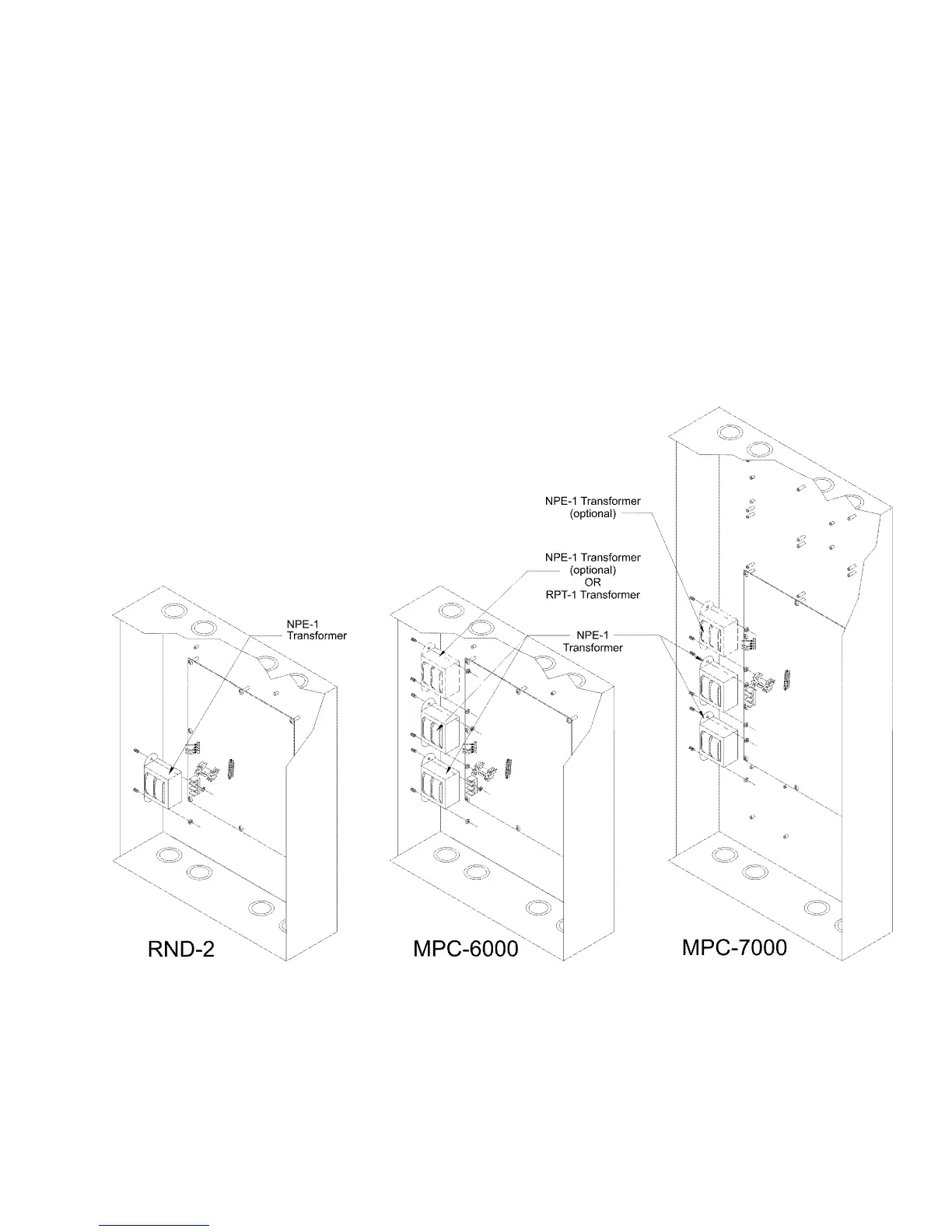

Transformer Mounting
 Place the NPE-1 transformer assemblies (one for RND-2, two for MPC-6000 or MPC-7000)
over the bottom one or two sets of studs on the left side of the enclosure, if desired.
Mounting the transformer can be accomplished before mounting the enclosure.
 Tighten provided transformer-mounting nuts (P/N 899-G67197) (2 per NPE-1).
 Plug the transformer assemblies into connectors J1 and J2 on the Main Board
(P/N MPC(6/7)-MB or MPC6-MB2). Bottom transformer plugs into J1.
 If optional additional transformer (P/N NPE-1 or RPT-1) is required, install it also at this
time.
 Optional transformer plugs into connector J3 on the Main Board (P/N MPC(6/7)-MB or
MPC6-MB2).
