Step
Procedure
C-8

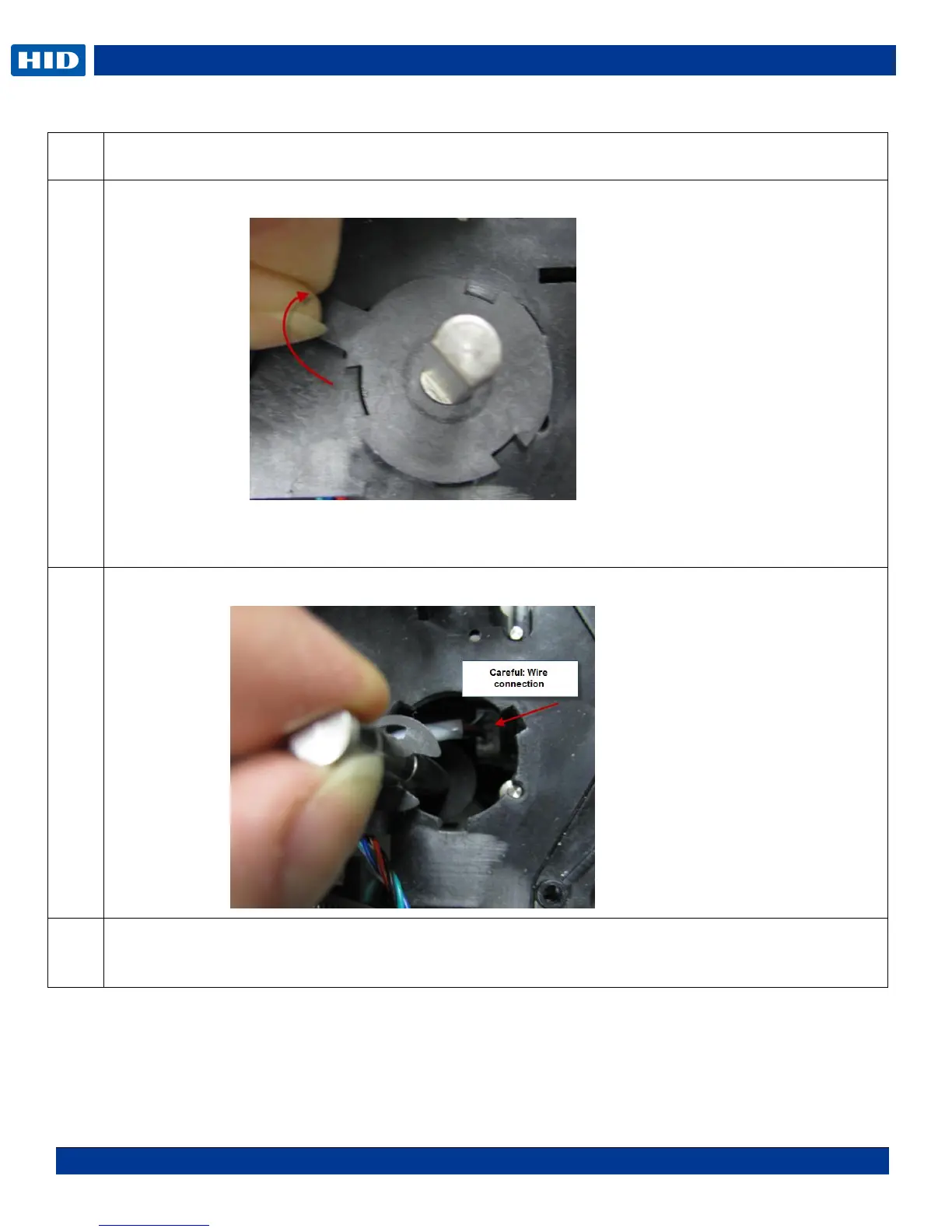

Remove the Shaft Bushing. (D900046)
Unlock the shaft bushing (D900046) by turning it counter clock wise.
(TIP: Lift UP on the tab to unlock the pin underneath the tab.)
C-9
Remove the roller ( D920119-01)
C-10
Replace with the new roller (D920119-01).
Use the E CLIP from the old roller. Make NOTE: of how this is placed on the roller.
