Fargo DTC1250e - Page 103

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 103
.

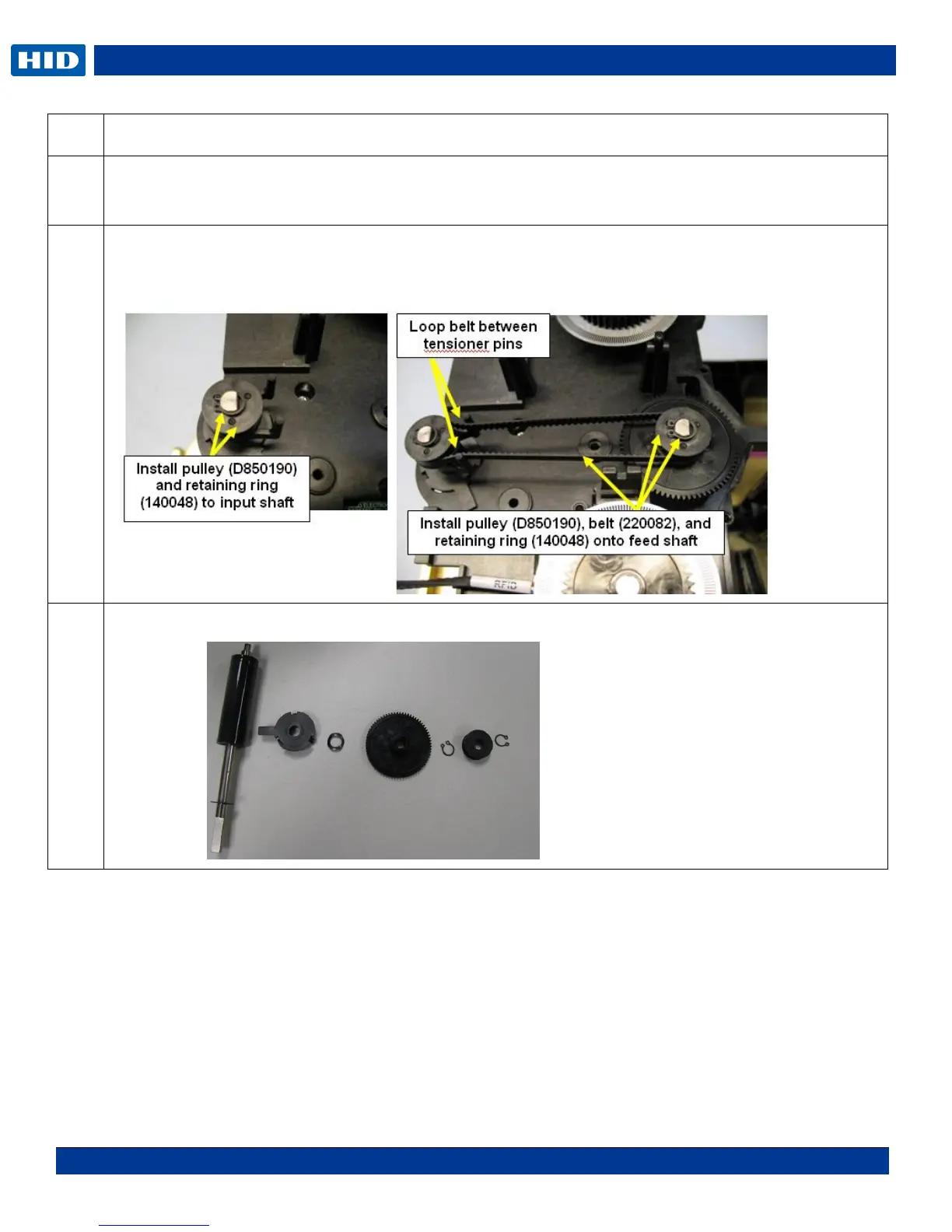

Step
Procedure
C-11
Reverse assembly to complete the roller replacement.
A new belt (220082) may be replaced if necessary.
C-12
TIP: Orient the flat side of the shaft facing RIGHT on both rollers when replacing the pulley.
C-13
Shows order of parts when replacing.
