DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 29
.

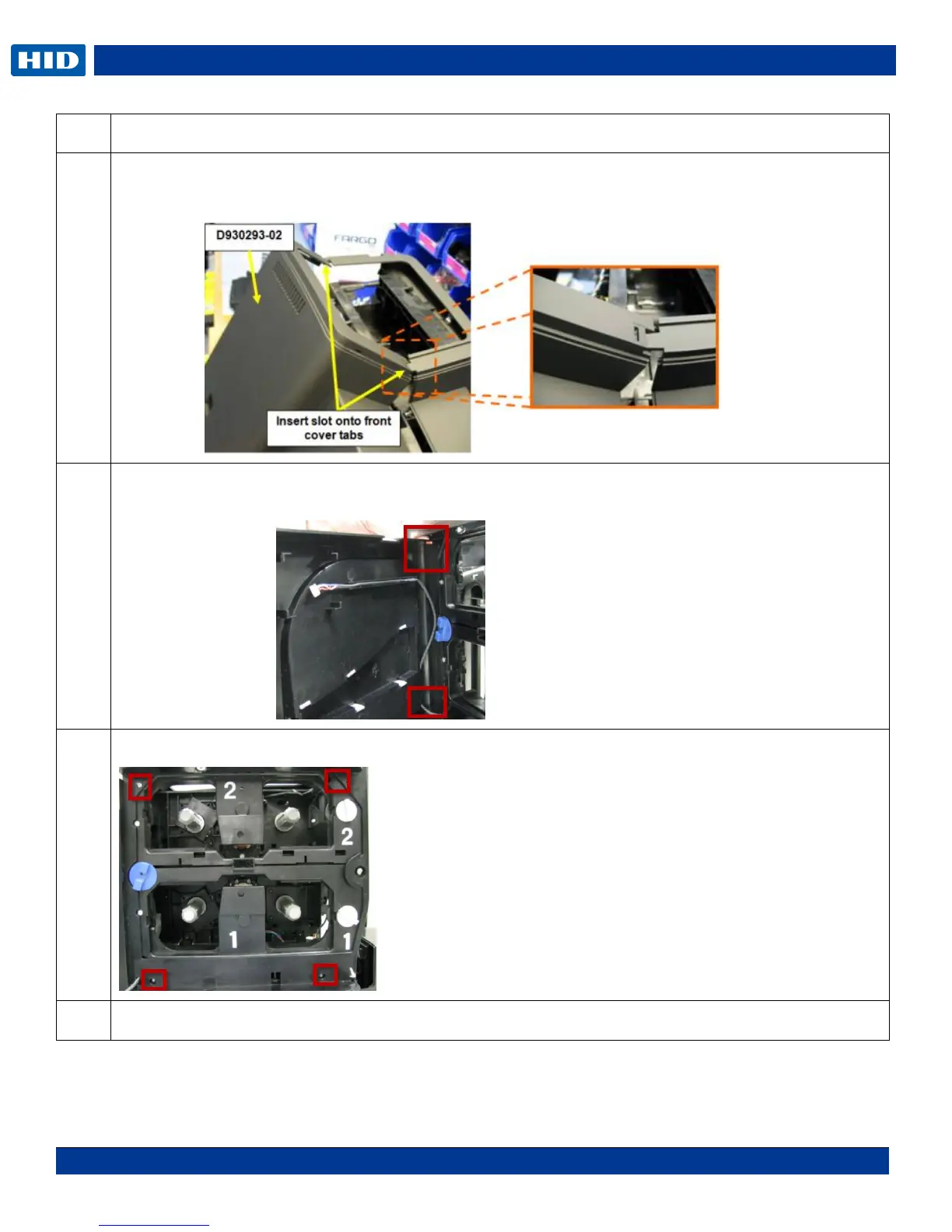

Step
Procedure
8
Unsnap the Lam Back Cover (D930293-02) panel from the bottom and lift up to remove.
Make NOTE: of the latches holding these together when replacing it.
9
Remove the Front Lam Door Cover (D930291-01) by flexing the door IN, release the top and bottom
pins holding the door to the frame.
10
Remove the 4 screws that hold the Front Lam Cover (D930289-01) to the frame.
11
Procedure complete
