Step
Procedure
7

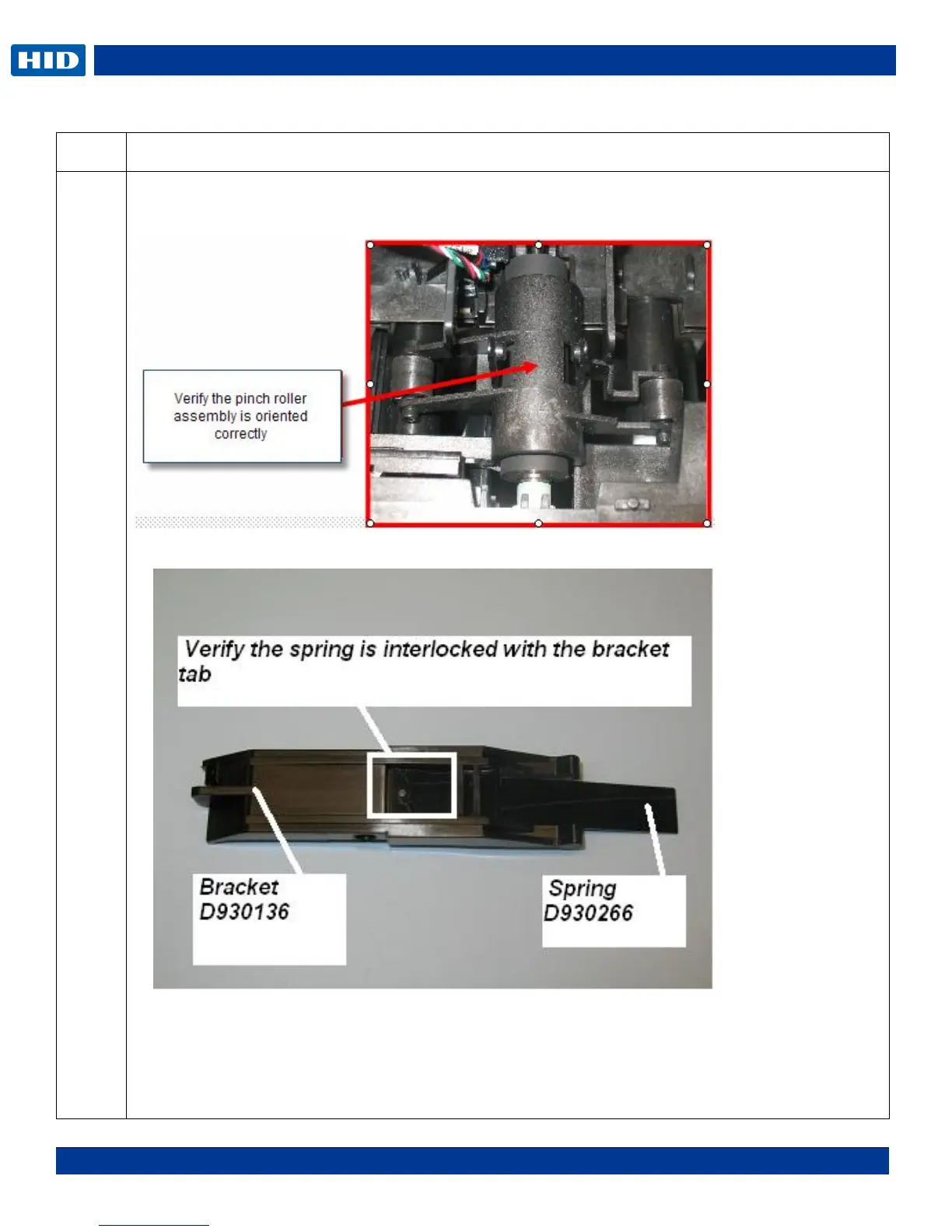

To reinstall the Pinch Roller Assembly:
a. Verify orientation of the Pinch Roller Assembly
b. Connect the spring to the bracket.
Continued next page
c. Insert the Bracket tabs into the holes provided in the sideplate frame.
(continued on next page)
