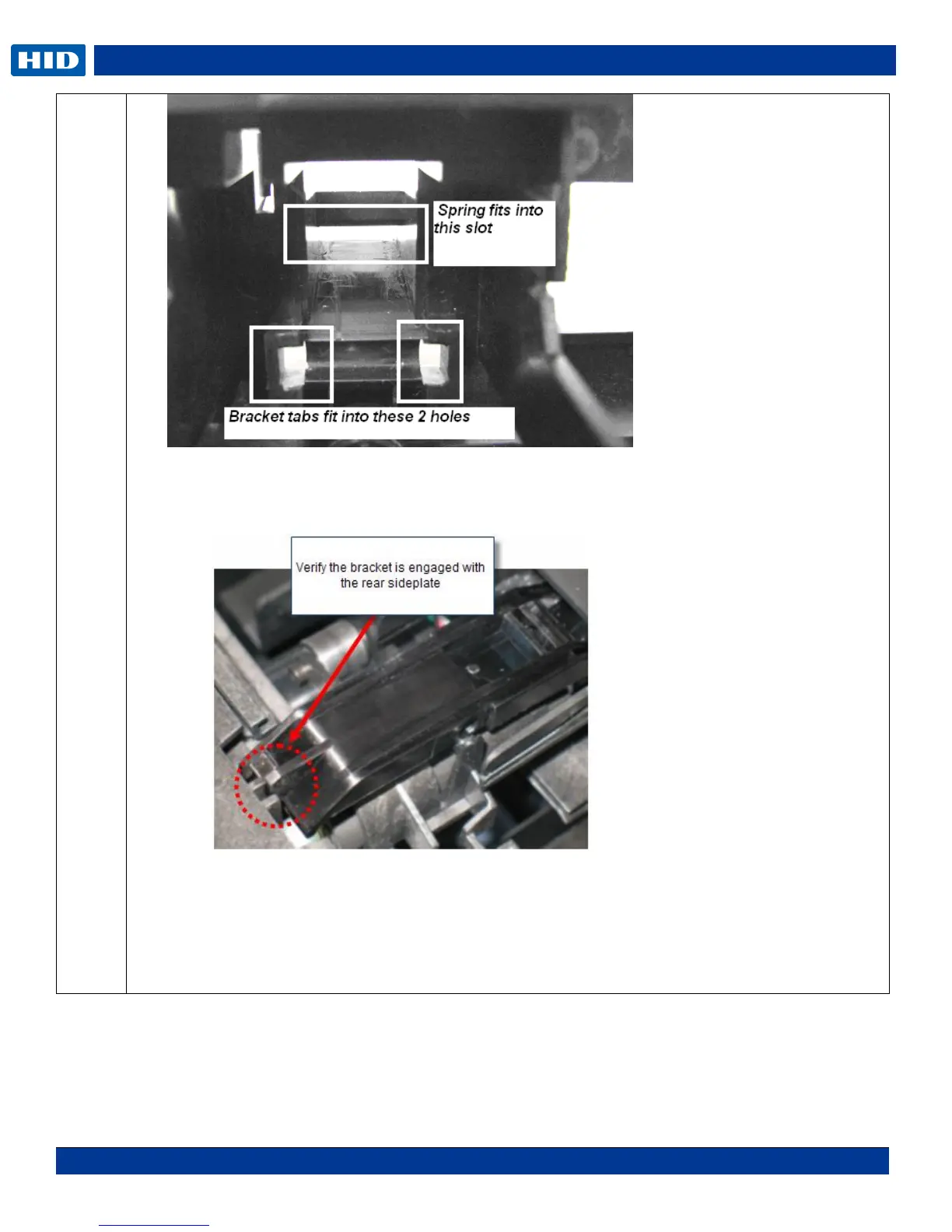

d. Tilt the spring upward and fit in to the slot provided. Some force is needed to snap the spring
and tabs in place.
e. Click the Bracket into the frame.
f. Snap the Roller Bracket tabs to the Lift Bracket.
(continued on next page)
