Step
Procedure
5

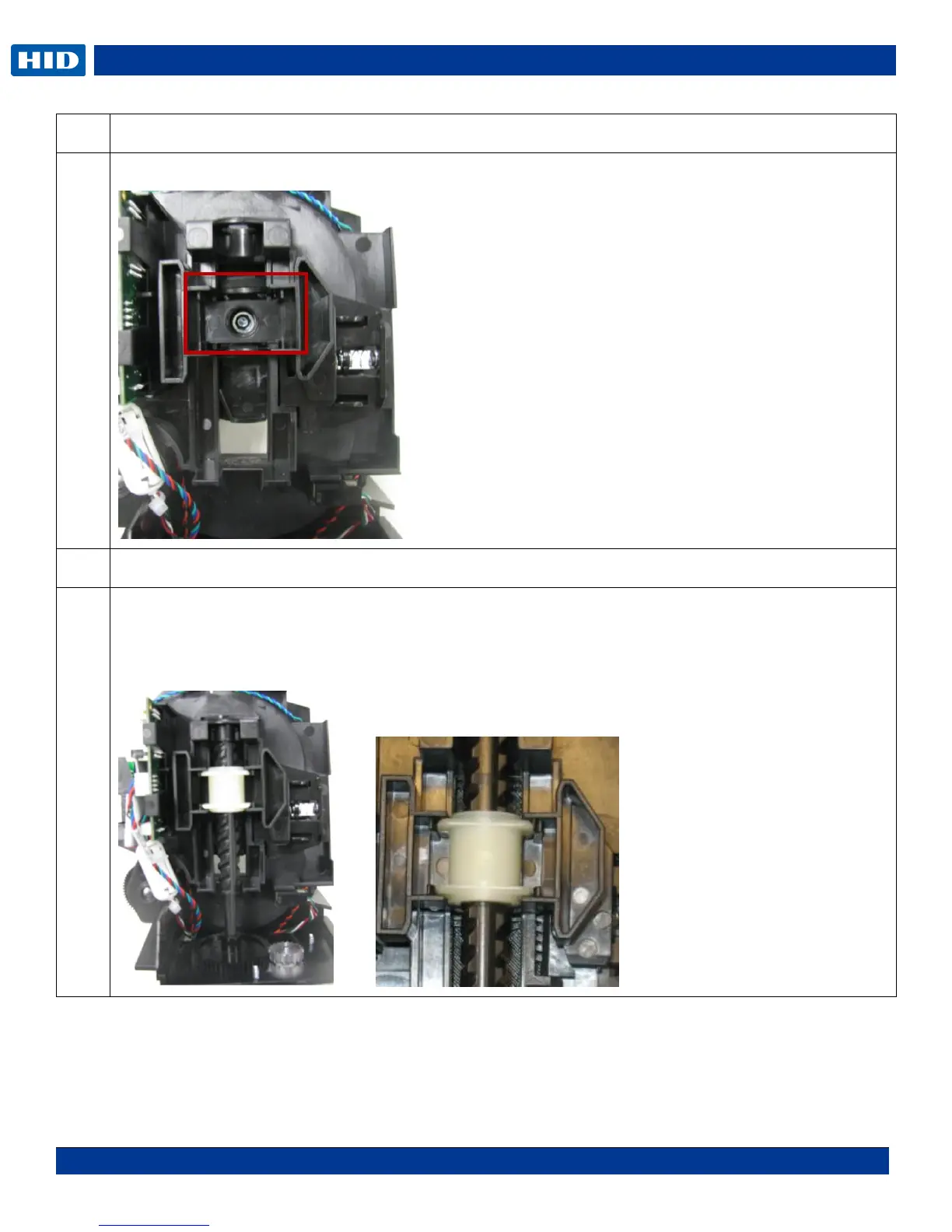

Remove the one screw that holds the Flipper Table to the Bracket Table Mount
6
Remove the Flipper Table.
7
Reverse assembly to install new Flipper Table.
Verify Lead Screw and Lead Pin is set correctly. Also see step 8 for spring and washer placement.
Push down on the top of the lead screw to set into the gear.
