AM-JACKAL-35 / JULY 2020
OUTPUTS
The Outputs menu should be used with caution and only as described
in this instruction guide.
Failure to do this can damage sensors connected to existing inputs.

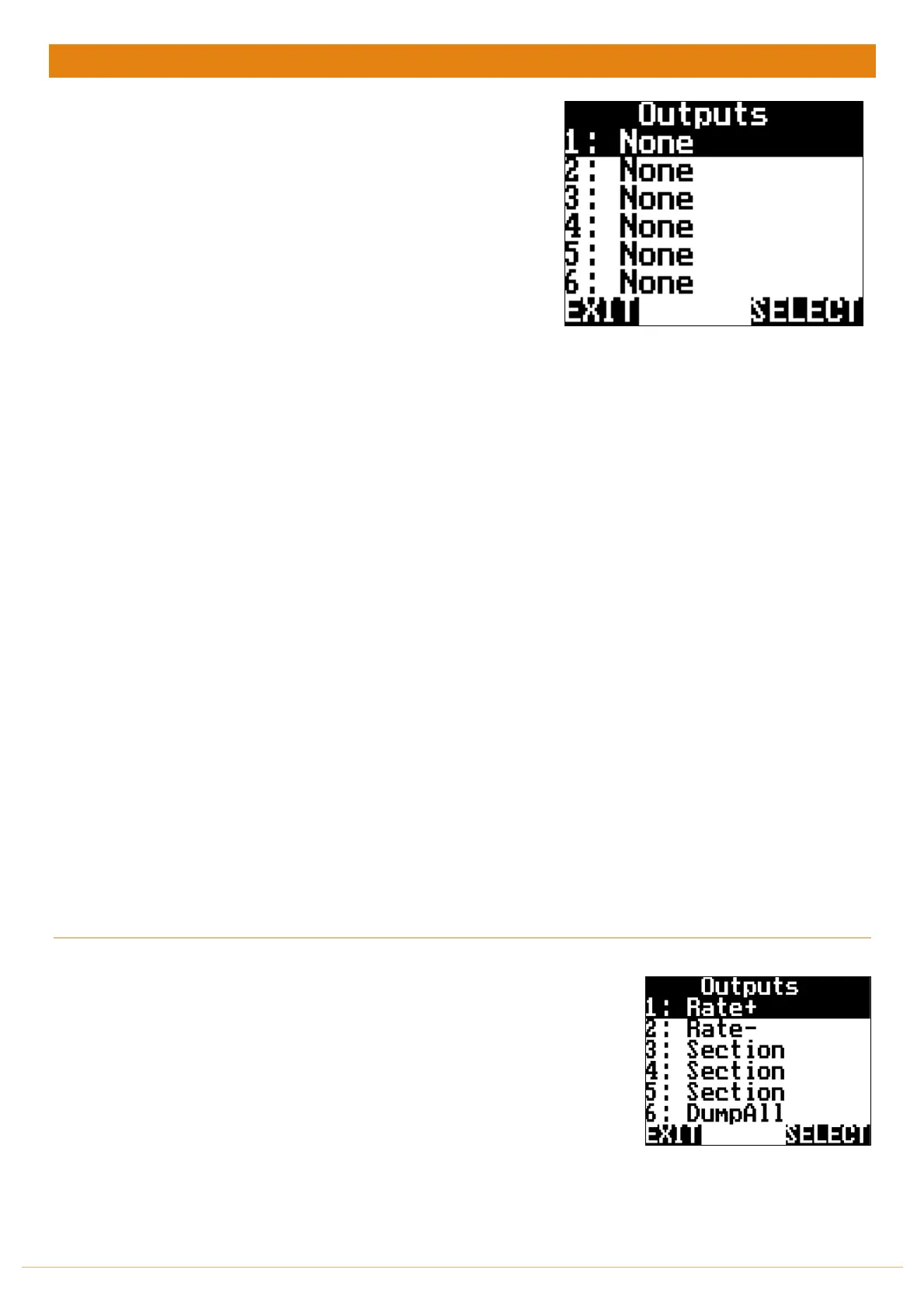

RUN SCREEN > SETUP > OUTPUTS
The following Outputs are available 1-6
• GND
• + 12v Supply
• Run/Hold
• AlarmAny
o Ability to activate an external alarm, e.g. External speaker or light. A 12v output will be triggered
when AlarmAny is active. – You cannot select an alarm to an output.
• Alarm #
o Ability to activate an external alarm (as above) on a chosen port against a specific alarm. E.g. an
external red light could be wired in and activated for a fan alarm and a yellow light could be wired in
and activated for a shaft alarm. When multiple alarms are active the available Alarm# will start at “0”
• Batch (As described on PAGE 34) – Control Only
• Section (Sprayer Function)
• Rate + (Sprayer Function)
• Rate – (Sprayer Function)
• Dump All (Sprayer Function)
• Dump # (Sprayer Function)
• Clutch All – Control Only
• Clutch # – Control Only
• Section + – Control Only
• Section – – Control Only
• Rate PWM – Control Only
• Rate PVG32 – Control Only
• Rate 5v – Control Only
• Ratio – Control Only
• Volt (Varying Voltage) 0-12v – Control Only
For further explanation of setups of your OUTPUTS please contact our Farmscan Service Department.
FLOW CONTROL VALVE WORKING BACK TO FRONT?
When using the Jackal Spray Wizard outputs are automatically setup for your
convenience. However, this information is provided below as an overview of the
setup.
In some circumstances your control valve may work back to front, i.e. opening
when it should be closing. The output screen allows you to swap the direction
rather than change the physical wiring.
Output 1: Rate + Output 2: Rate –
Output 3: Section 1 Output 4: Section 2
Output 5: Section 3 Output 6: Dump Valve (if installed)
