AM-JACKAL-35 / JULY 2020
INSTALLING SENSORS
The following examples will help to determine appropriate sensor input connections into the Jackal IF you choose to
alter the pre-terminated cable to your specifications or have purchased the fully unlocked Jackal Control.
TWO WIRE “REED” – BLACK END SENSOR (OLD SENSORS)
KIT # 1007P, 2009, 2076
These kits will all include a “reed” type sensor. The reed type
sensor is a 2 wire sensor (normally black end) and only uses a
ground/earth wire and a signal wire.

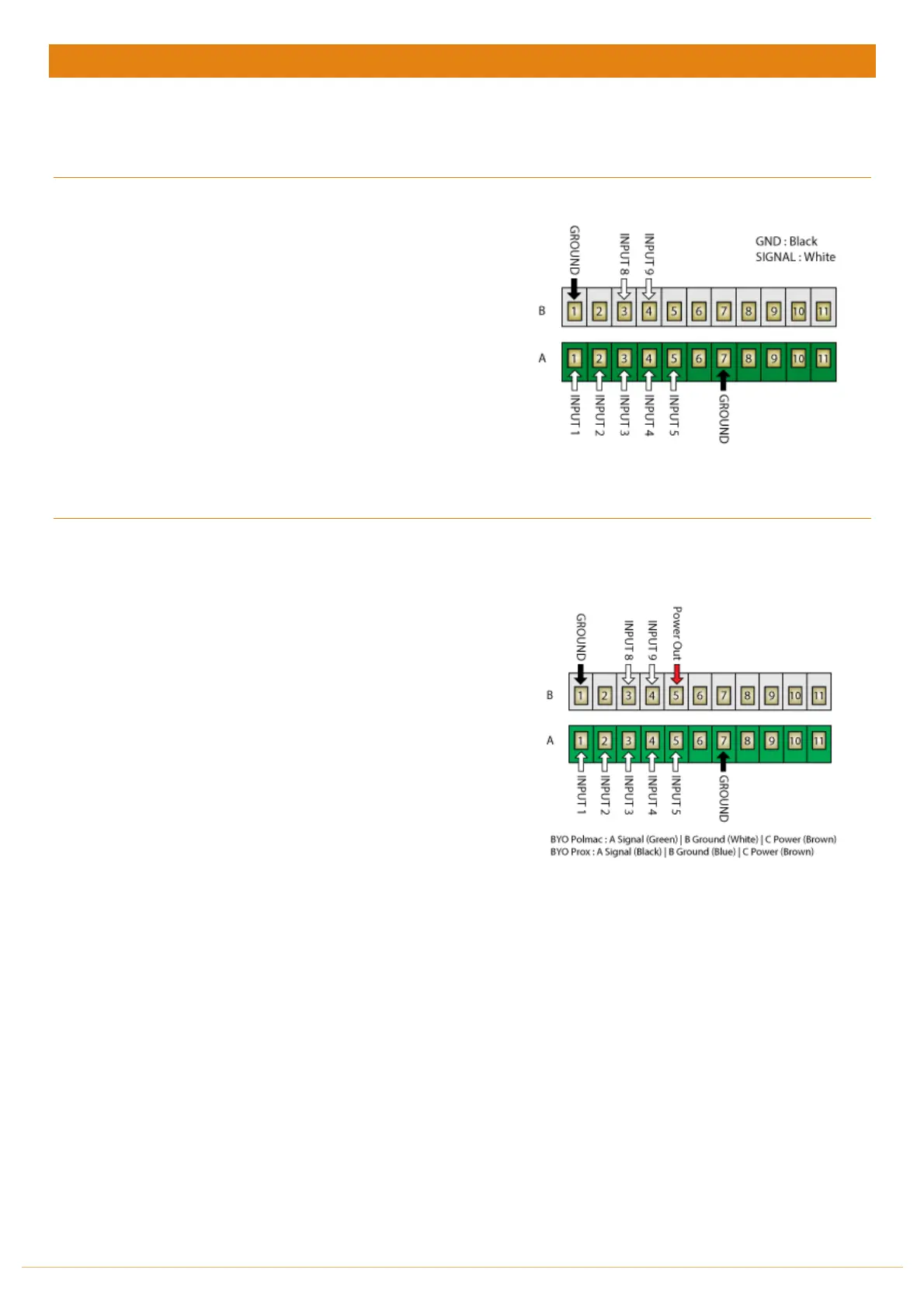

The diagram to the right shows which terminals to connect your
sensors to.
Insert the black ground wire to either (A7 or B1) and the
white/coloured signal wire into any (A1-A5 or B3-B4)
Use the wizard to setup the port and calibrate a sensor once
installed.
THREE WIRE – PROX SENSOR OR 3 WIRE FLOW METERS (NEW SENSORS)
KIT # AA-2011P, AA-123P, AA-125, AA-242, AA-230X, AA-232X, AA-231
These kits will all include a “square wave” type sensor. The sensor
is 3 wires and uses a ground/earth wire, a signal wire and a 12v
power wire.
These inputs are also used with 3 wire (square wave) flow meters.
The diagram to the right shows which terminals to connect your
sensors to.
Insert the ground wire to either (A7 or B1) and the sensor wire into
any (A1-A5 or B3-B4) and the power wire to (B5)
Use the wizard to setup the port and calibrate a sensor once
installed.
NB: A Proximity sensor can be used for wheel speed or RPM.
