AM-JACKAL-35 / JULY 2020
CONNECTIONS
The connector on the rear of the Jackal Controller has the following connection points available for use

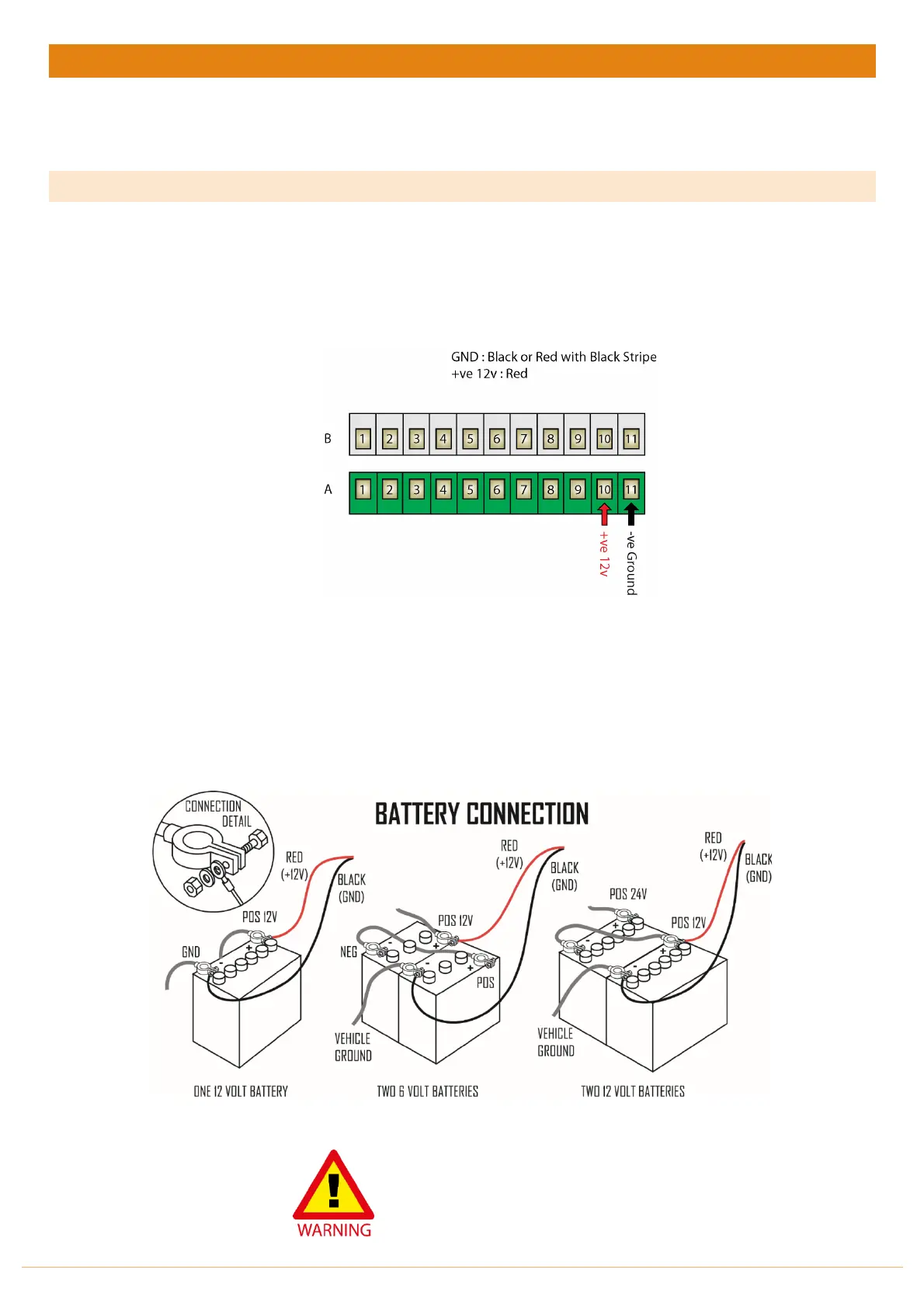

POWER CONNECTION
Power connection must come direct from the battery terminals. WARRANTY IS VOID if power is not
connected as described in this section.
The supplied harness comes pre-terminated; however, this information is important if required in the future.
1. Connect power cable supplied DIRECTLY TO BATTERY
2. Ring terminals are used for battery connection and the bare end used to connect to the rear Jackal.
(Refer above image for power connection)
3. Connect Ground to BATT -VE, Terminal B11 using the RED with BLACK stripe wire
4. Connect +12 Volts (+battery terminal) to BATT +VE, Terminal B10 using the RED wire
5. Ensure that the battery connection to the Jackal is +12 Volts
Connecting 24V to the Jackal will VOID WARRANTY
Disconnect the terminal plugs
from the Jackal if ARC
WELDING on machinery
