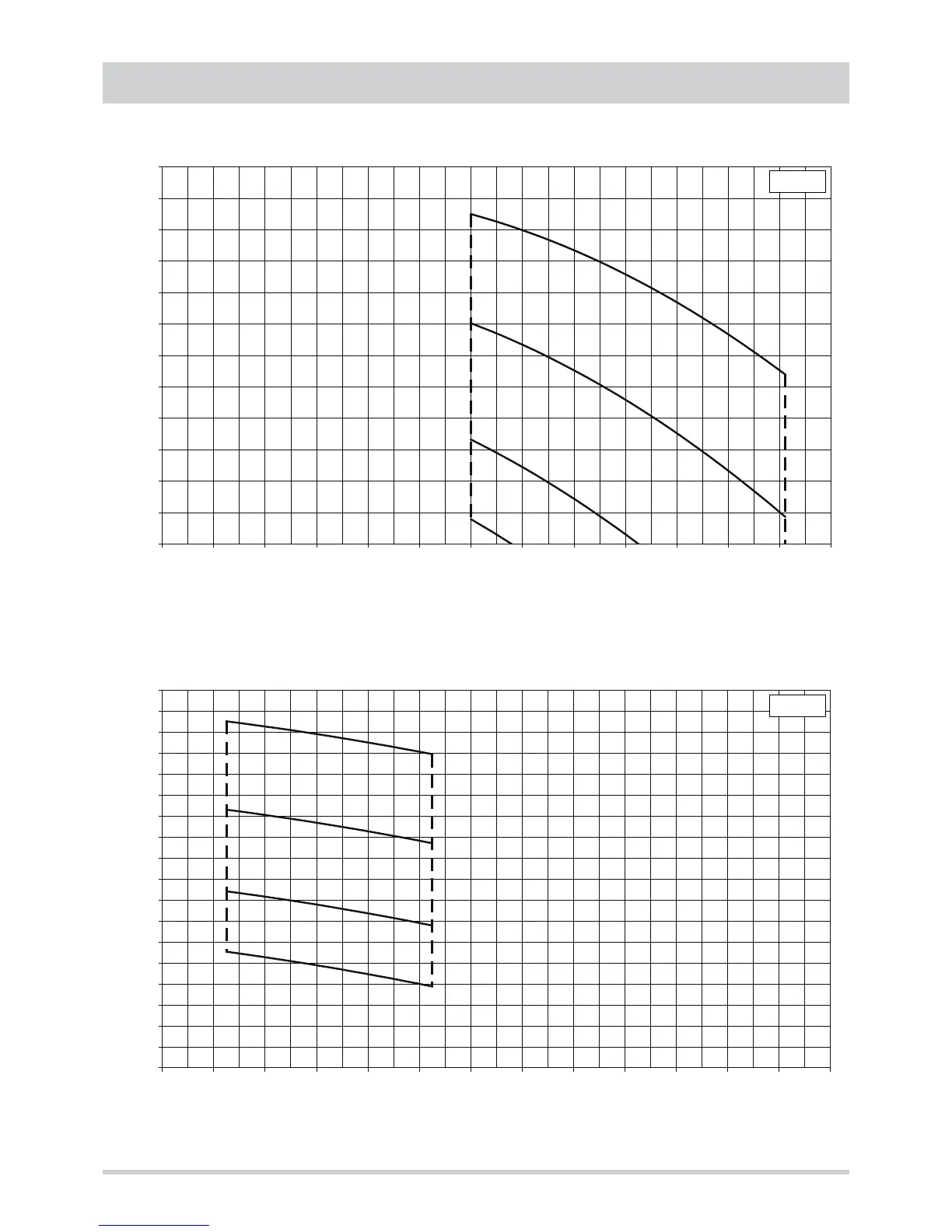

TECHNICAL DATA AND PERFORMANCES
Air flow rate [ m
3
/h ]
Available static head [ Pa ]
Upsized
140.2
Standard
Reduced
The graphs are referred to units operating with air at the temperature of 20°C (density 1,20 kg/m
3
).
0
50
100
150
200
250
300
350
400
450
500
550
600
8000 9000 10000 11000 12000 13000 14000 15000 16000 17000 18000 19000 20000 21000
Air flow rate [ m
3
/h ]
Available static head [ Pa ]
Upsized
110.2
Standard
Reduced
