Ferroli RFA - Pressure Drops - Unit with Option Heating Integration: Hot Water Coil; Pressure Drops - Unit with Option Heating Integration: Condensing Gas Heating Module

26
TECHNICAL DATA AND PERFORMANCES
0
20
40
60
80
100
5000 10000 15000 20000 25000 30000 35000 40000

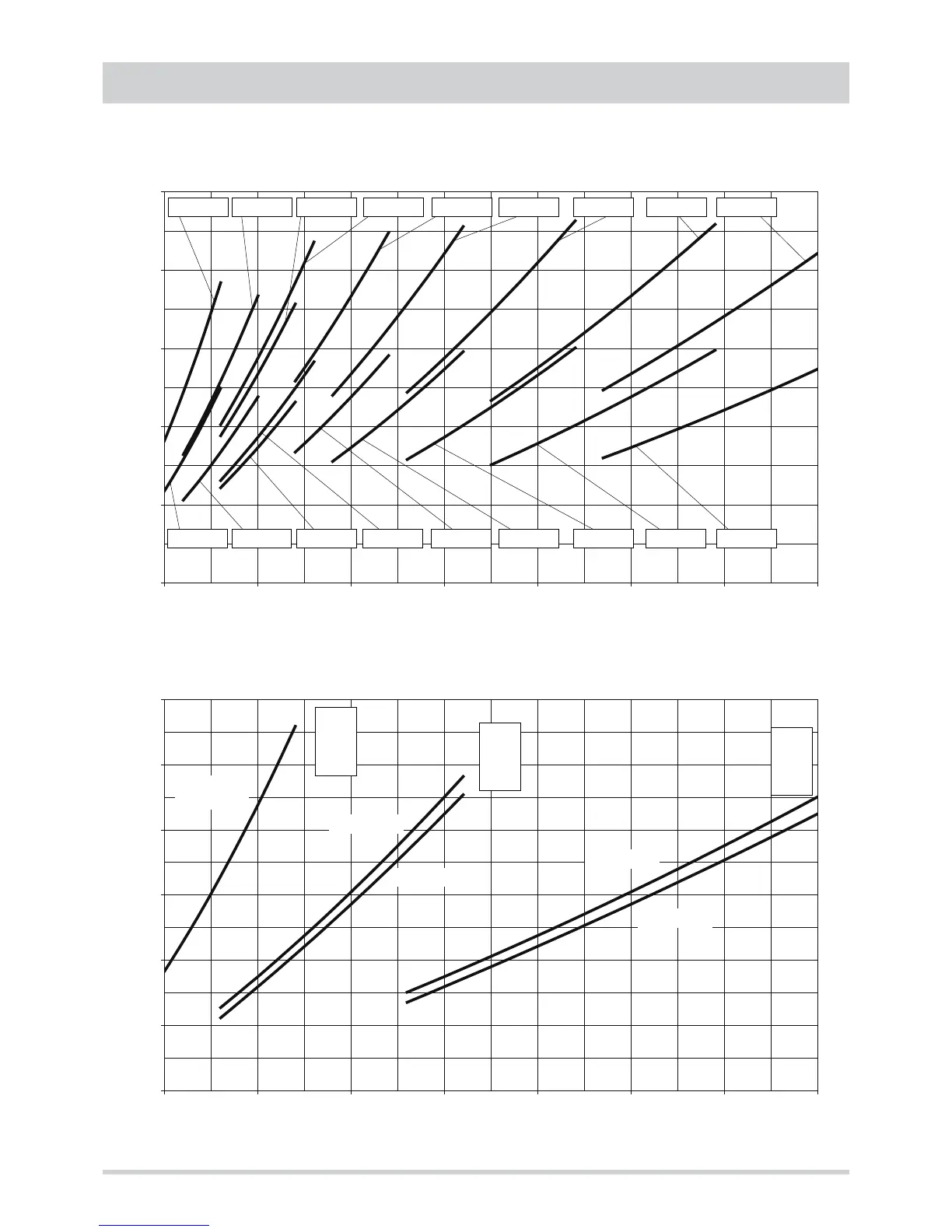

Pressure drops - unit with option “Heating integration” : "Hot water coil"
Air flow rate [ m
3
/h ]
Pressure drops [ Pa ]
0
20
40
60
80
100
120
5000 10000 15000 20000 25000 30000 35000 40000
Pressure drops - unit with option “Heating integration” : "Condensing gas heating module"
Air flow rate [ m
3
/h ]
Pressure drops [ Pa ]
The graphs are referred to units operating with air at the temperature of 20°C (density 1,20 kg/m
3
).
35.1 - 3R 45.1 - 3R 55.1 - 3R 70.2 - 3R 90.2 - 3R 110.2 - 3R 140.2 - 3R 180.2 - 3R 220.2 - 3R
35.1 - 2R 45.1 - 2R 55.1 - 2R 70.2 - 2R 90.2 - 2R 140.2 - 2R 180.2 - 2R 220.2 - 2R110.2 - 2R
70.2
90.2
110.2
35.1
45.1
55.1
140.2
180.2
220.2
Standard
and upsized
Standard
Upsized
Standard
Upsized
