38

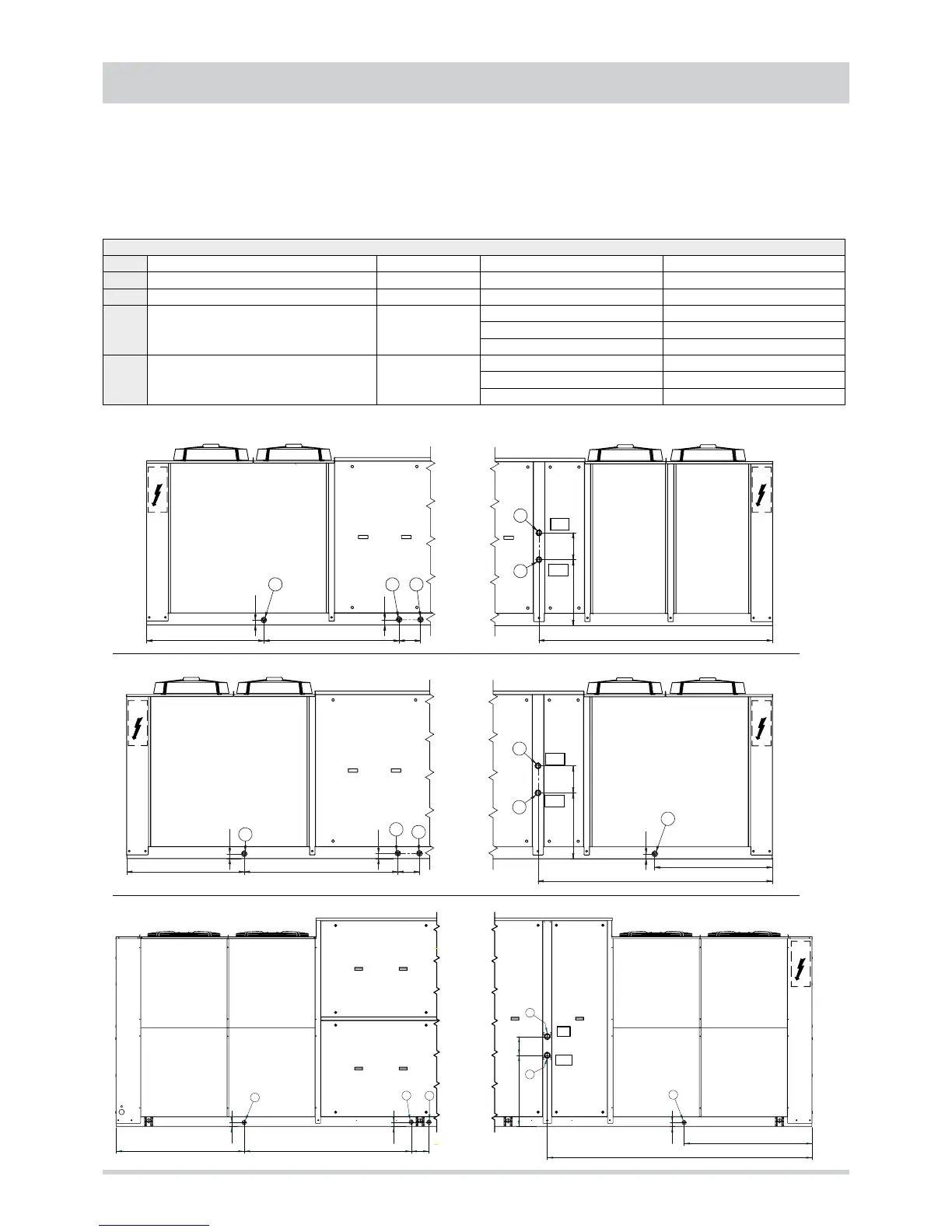

CONNECTIONS
IMPORTANT
• . IF THE UNIT IS SUPPORTED BY ANTI-VIBRATION MOUNTS, TAKE PARTICULAR NOTE THAT ALSO THE WATER
CONNECTIONS MUST HAVE ANTI-VIBRATION JOINTS INSTALLED.
• . IT IS OBLIGATORY TO MOUNT A METAL MESH FILTER WITH A MESH OF NO MORE THAN 1 MM ON THE WATER
INLET TUBE, AT THE RISK OF THE CANCELLATION OF THE WARRANTY.
LEGEND FOR HYDRAULIC CONNECTORS
1 Internal coil condensate discharge Standard Mod. 35.1 - 220.2 Gas ¾” F UNI ISO 7/1
2 External coil condensate discharge Standard Mod. 35.1 - 220.2 Gas ¾” F UNI ISO 7/1
3 Droplet separator condensate discharge Optional Mod. 35.1 - 220.2 Gas ¾” F UNI ISO 7/1
4 Water coil inlet Optional
Mod. 35.1 - 55.1 Gas 1” F UNI ISO 7/1
Mod. 70.2 - 110.2 Gas 1 1/4” F UNI ISO 7/1
Mod. 140.2 - 220.2 Gas 2” F UNI ISO 7/1
5 Water coil outlet Optional
Mod. 35.1 - 55.1 Gas 1” F UNI ISO 7/1
Mod. 70.2 - 110.2 Gas 1 1/4” F UNI ISO 7/1
Mod. 140.2 - 220.2 Gas 2” F UNI ISO 7/1
Q.E.
54
1090 1260 200
94
2 3 1
Q.E.
116 052
2173
IN
OUT
4
5
Q.E.
1090 1425 200
54
94
2
3
1
Q.E.
052
2173
1090
54
116
4
5
2
IN
OUT
2
3
1
1437 1878 200
45
49
4
5
IN
OUT
2
2975
801 210
1437
45
Q.E.
Models 35.1 - 45.1 - 55.1
Models 35.1 - 45.1 - 55.1
Models 140.2 - 180.2 - 220.2
