Festo CPV10 - Overview Vacuum Generator Plates

B. Summary of components
B−7
Festo P.BE−CPV−EN en 0503g

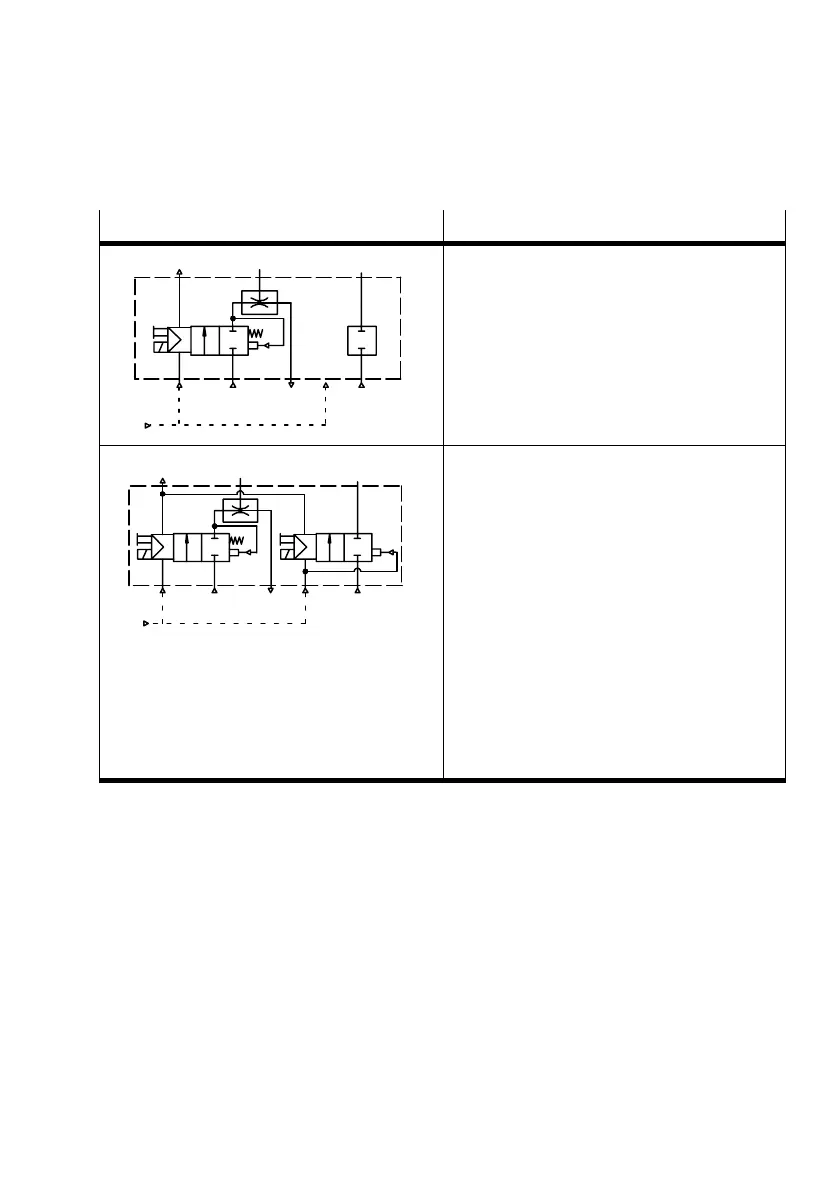

Vacuum generator plate Remarks
12
2
113/5
1
12/14
14
82/84 4
Ident. code: A
Function: Vacuum generator (control side 14)
Valve:
 2/2−way valve
 single−solenoid
 blocked in basic position
 air−assisted pneumatic spring return
 flow control valve at output 4
12
2
113/51
12/14
14
82/84
4
Ident. code: I
Function:
 vacuum generator (control side 14)
 reject pulse (control side 12)
Valve at control side 14:
 2/2−way valve
 single−solenoid
 blocked in basic position
 air−assisted pneumatic spring return
 flow control valve at output 4
Valve at control side 12:
 2/2−way valve
 single−solenoid
 blocked in basic position
 pneumatic spring return
Tab.B/5: Overview vacuum generator plates
