Festo CPV10 - Fitting the Valve Terminal on a hat Rail

2. Fitting
2−11
Festo P.BE−CPV−EN en 0503g
1 Per end plate one
M4x10 screw
(CPV10),
two M4x10
screws (CPV14)
or M5x10
(CPV18)
2 Hat rail
3 Fixing bolts
(only CPV10/14)
4 Hat rail clamping
unit
1
2
3
4

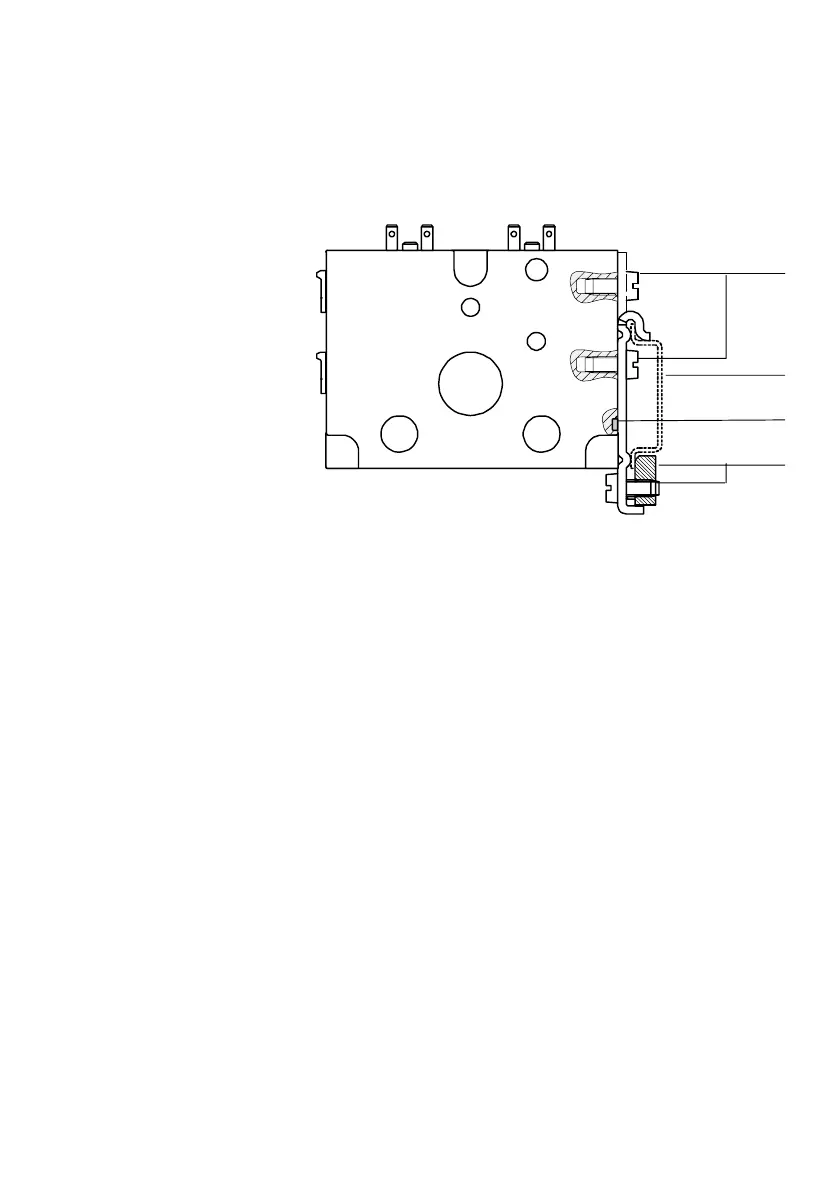

Fig.2/2: Fitting the valve terminal on a hat rail
· Hang the CPV valve terminal onto the hat rail. Secure the
CPV valve terminal on both sides with the hat rail clamp
ing unit against slipping or sliding down.
