End plate pairs for internal auxiliary pilot air
(internal pilot air) and pneumatic multipin
Description
CPV..−EPL−PG CPV..−EPR−PG
Ident. code: Y
 Connections on the pneumatic
multipin
 Pressure zone separation only
permitted with separator plate
Ident. code T.
 Maximum number of pressure
zones 2
 Valves to the left of the separator
plate can be used for vacuum
 Right−hand end plate with inter
nally branched auxiliary pilot air
is marked with INT.
CPV..−EPL−PE CPV..−EPR−PG
Ident. code: −−−
 Connections on the pneumatic
multipin
 Pressure zone separation only
permitted with separator plate
Ident. code T.
 Maximum number of pressure
zones 3
 Valves to the left of the separator
plate can be used for vacuum
 Right−hand end plate with inter
nally branched auxiliary pilot air
is marked with INT.

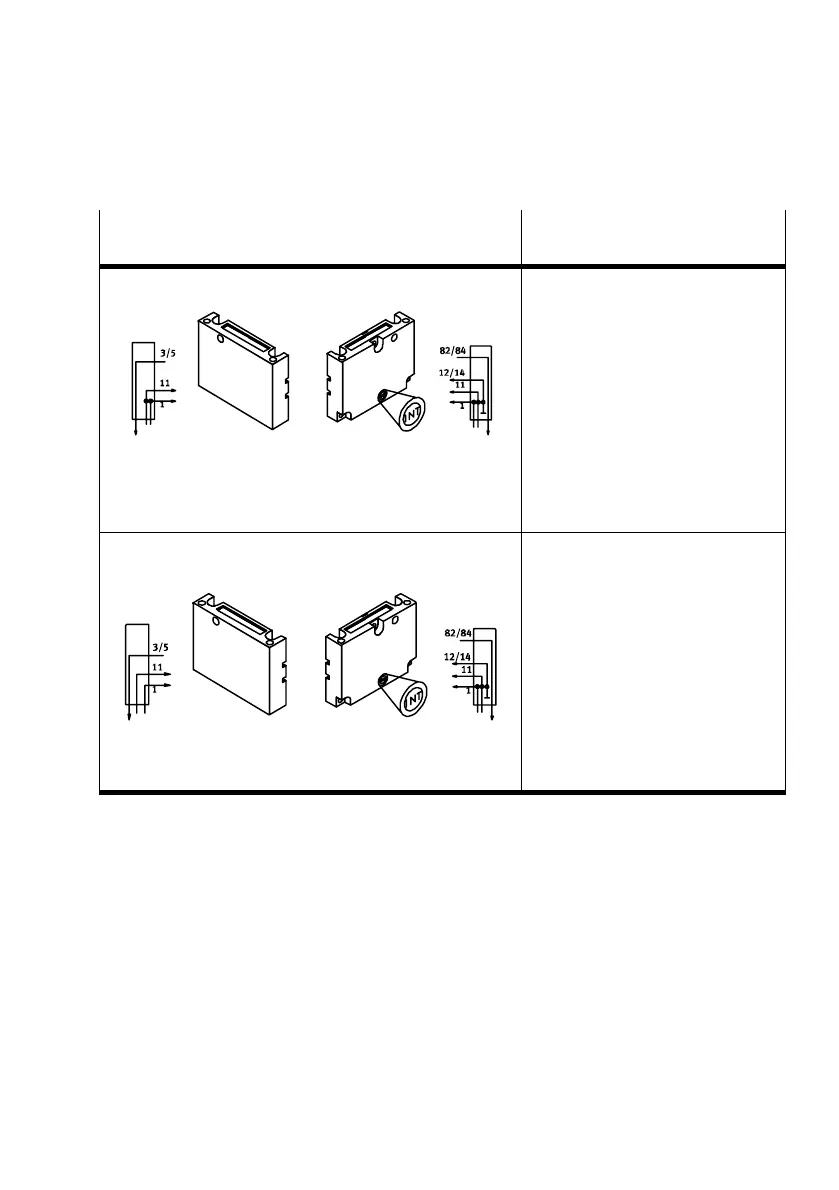

Tab.B/11: End plate pairs for internal auxiliary pilot air and pneumatic multipin
