1. Sysytem summary
1−17
Festo P.BE−CPV−EN en 0503g
You will find the following electrical connecting and display
elements on the CPV valve terminal with MP connection:
1
2
3
4
5
6
7
8
1 Incoming CP cable
2 Continuing CP cable
3 Identification labels
4 Yellow LED, signal status display
of the relays
5 Yellow LED, signal status display of the
pilot solenoids
6 Relay connections with connecting
cable
7 Earth/ground connection
8 Green LED, status display of the
CP connection

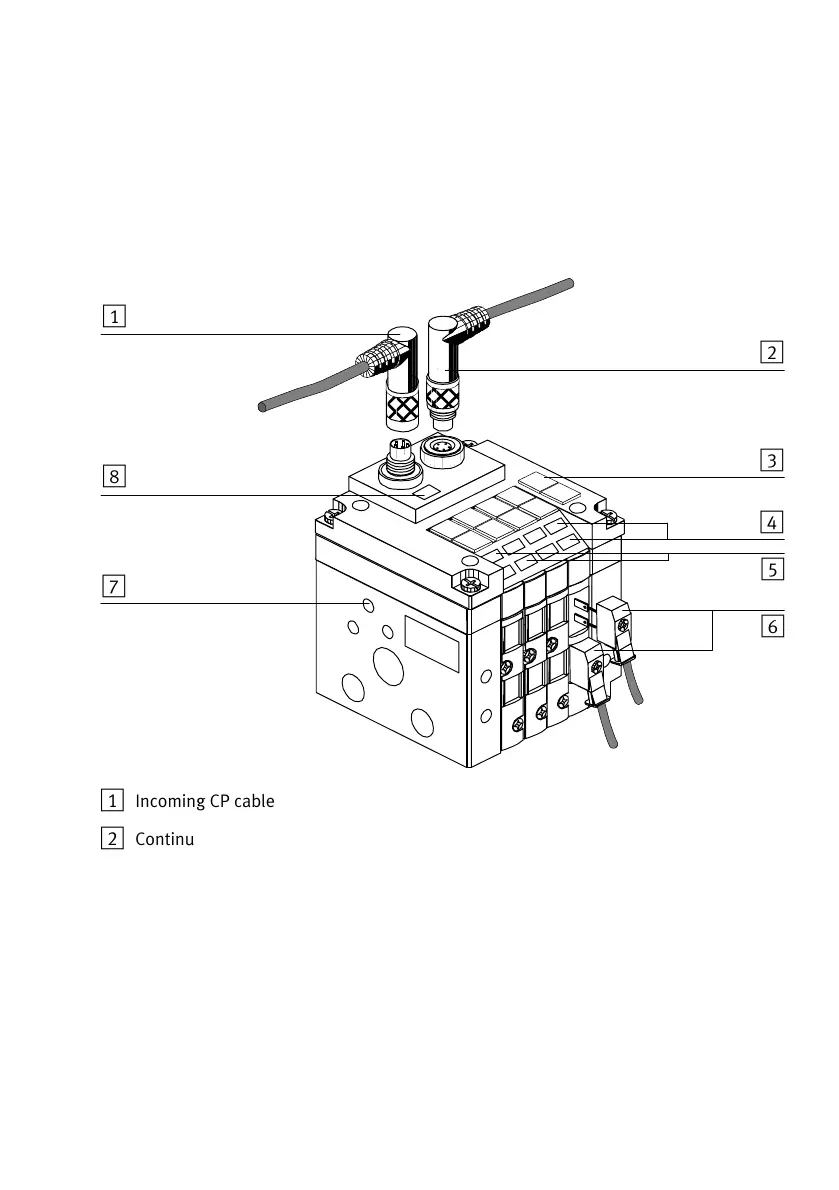

Fig.1/8: Electrical connecting and display elements of the CPV valve terminal with
CP connection
