Festo CPV10 - CPV Valve Terminal; Sizes of the Pneumatic Connections

3. Installation
3−12
Festo P.BE−CPV−EN en 0503g
Fit the screw connector or the silencers according to the table
below. Then connect the pneumatic tubing.

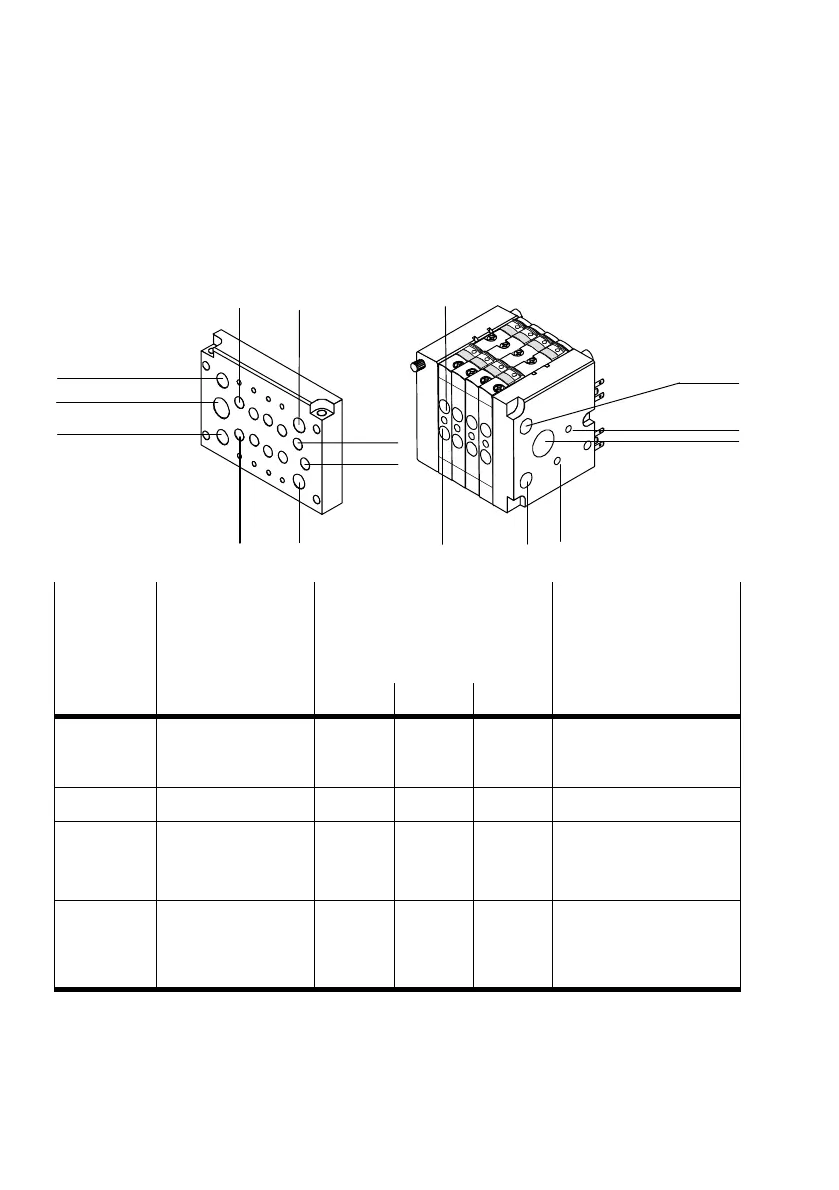

Pneumatic multipin
CPV valve terminal
1
3/5
11
2
4
11
82/84
12/14
1
2
4
11 12/14
3/5
1
82/84
Conne cti o n
identifier
ISO 5599
Tubing Connection size ISO 228,
specifications in brackets
are for pneumatic multipin
with ste
p
Connection
CPV10 CPV14 CPV18
1 or 11 Compressed air/
vacuum
G1/8 G1/4 G3/8 Screw connector in end
plates or pneumatic
multipin
2 or 4 Work air/vacuum M7 G1/8 G1/4 Screw connector
3/5 Exhaust right−hand/
left−hand end plate
Pneumatic multipin
G3/8
G1/4
G1/2
G3/8
G1/2
G1/2
Screw connector
 for ducted exhaust air
 for silencers
12/14 or
82/84
Auxiliary pilot air or
exhaust right−hand/
left−hand end plate
Pneumatic multipin
M5
M7 (M5)
G1/8
G1/8
G1/4
G1/4
Screw connector at
connection 82/84
 for ducted exhaust air
 for silencers
Tab.3/1: Sizes of the pneumatic connections
