Festo CPV10 - Fitting the CPV Valve Terminal to the Pneumatic Multipin

2. Fitting
2−22
Festo P.BE−CPV−EN en 0503g
2.2.2 Fitting the CPV valve terminal to the pneumatic multipin
Proceed as follows:
· With CPV valve terminals with IC connection, insert the
socket head screws supplied into the fastening holes.
With MP, AS−Interface, DI or CP connections, the socket
head screws are already in the fastening holes under the
electrical sub−base and are secured against loss.
· Place the 3−part or 4−part seal for sealing the supply chan
nels into the grooves in the left or right−hand end plate.
· In order to seal the work channels, carefully press the two
seals into the thread of the work connections.
· Fasten the CPV valve terminal with the 4 socket head
screws on the multipin. Tighten the screws in diagonally
opposite sequence with 2 Nm (CPV10/14) or 4 Nm
(CPV18).
1 3−part seal in the
connections of
the left−hand end
plate
2 2 seals per valve
sub−base for the
work connections
3 4−part seal in the
connections of
the right−hand
end plate
4 Socket head
fastening screws
of the pneumatic
multipin
1
2
4
3

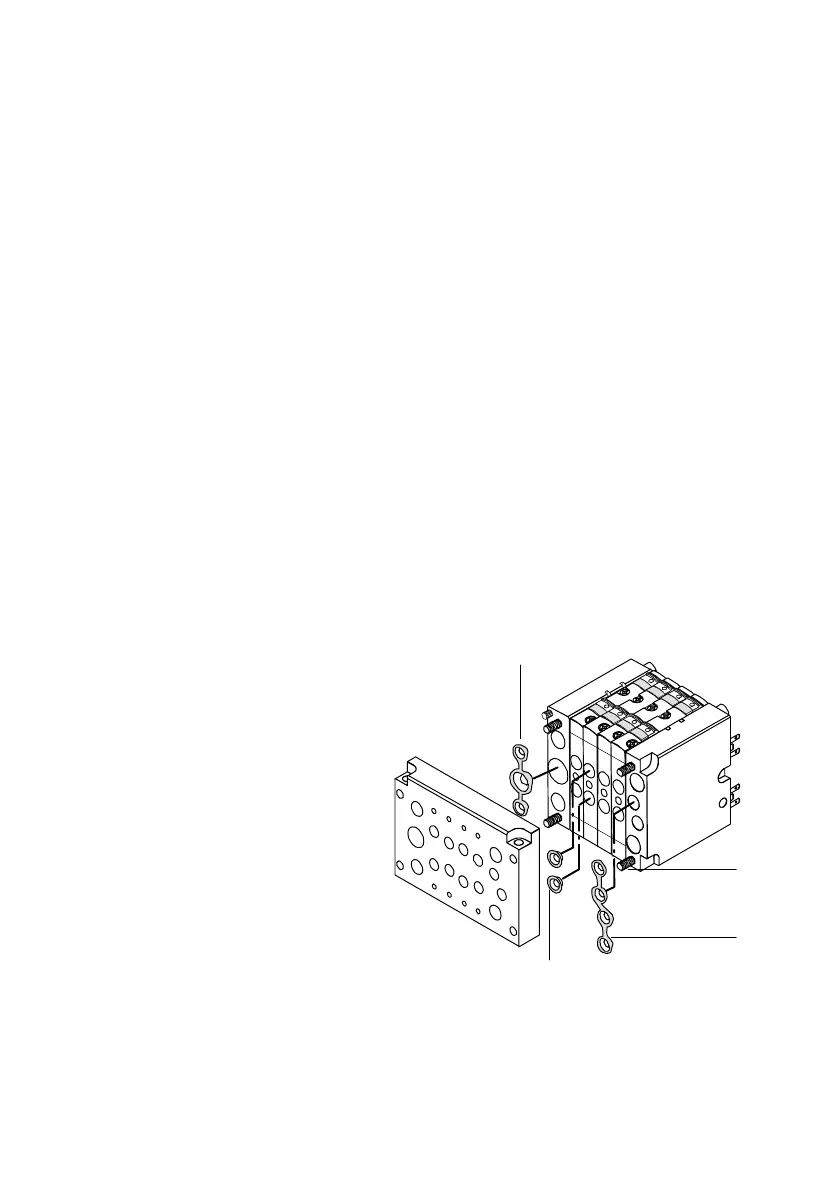

Fig.2/6: Fitting the CPV valve terminal onto the pneumatic multipin
