Festo CPV10 - Connecting the CPV Valve Terminal; Type of Mounting Rear; Type of Mounting Top

2. Fitting
2−6
Festo P.BE−CPV−EN en 0503g
Type of mounting rear Type of mounting top
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
ÓÓÓ
1
2
3
4
1
1
2
2
1
1
2
2
1
M4 (CPV10/14) or M5 screw (CPV18)
for fastening onto a wall
2 Additional self−threading screw with
CPV18 valve terminals
3 Self−threading screws for fastening
the profile sections onto the CPV valve
terminal
4 Fixing bolts (only CPV10/14)
1 5.5 mm bore for wall fastening
2 Self−threading screws for fastening
the profile sections onto the CPV valve
terminal

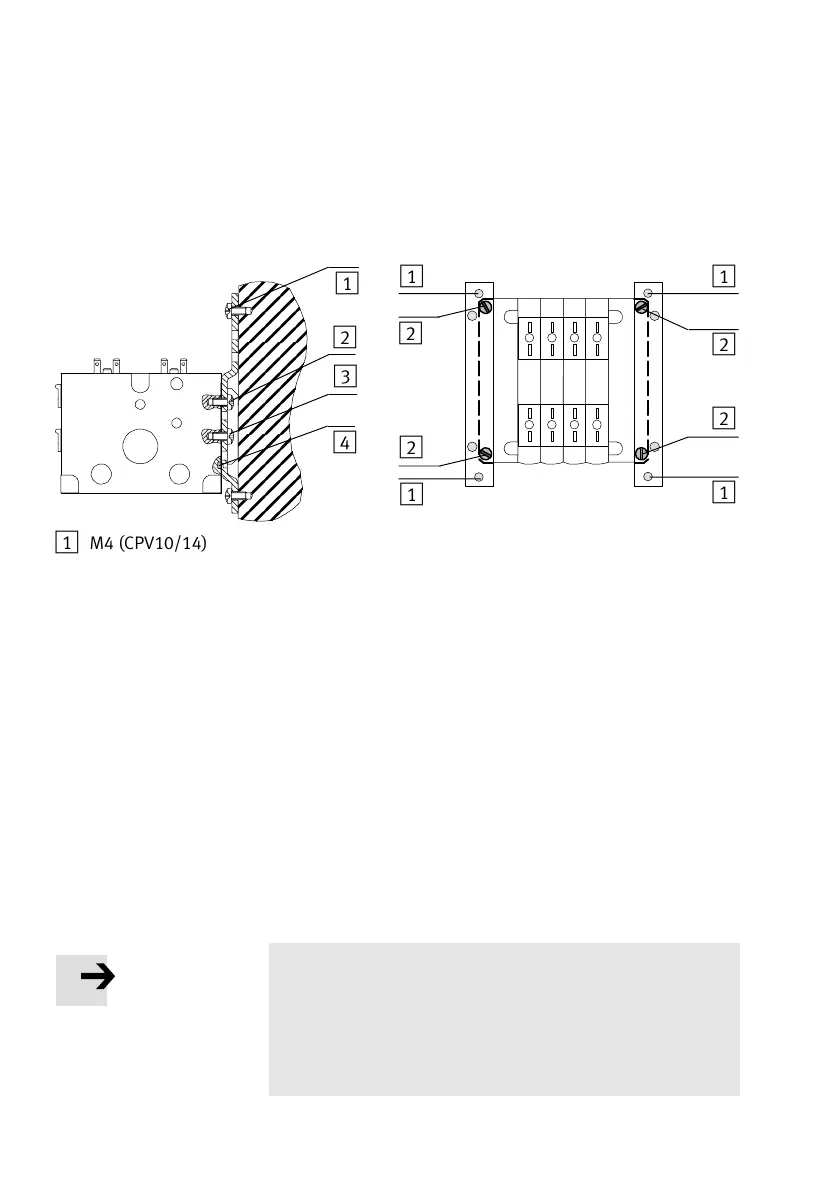

Fig.2/1: Connecting the CPV valve terminal
· Make sure there is sufficient space for connecting the
power supply and compressed air tubing. For top" fit
ting, a suitable spacer or appropriate cut−out wall section
is required for the electrical connections (see Fig. 2/3).
Please note
The hole dimensions for rear fitting of the CPV valve
terminal (Fig. 2/3) do not apply to CPV10/14 valve
terminals with direct connection for Interbus Loop
(type CPV..−GE−IL−..) or AS−Interface connection with
inputs/outputs (type CPV..−GE−ASI..E/..A).
