1.3 The operating modes of the CoDeSys controller
The CoDeSys controllers can be operated in various operating
modes, depending on the demand:
 Stand Alone
 Remote Controller Ethernet
 Remote Controller Fieldbus (fieldbus node required)
The individual operating modes are briefly presented in the
following:
Stand Alone operating mode
1
2
1 CPX−CEC/CPX−CEC−...
2 CPX terminal controlled by the CPX−CEC/CPX−CEC−...

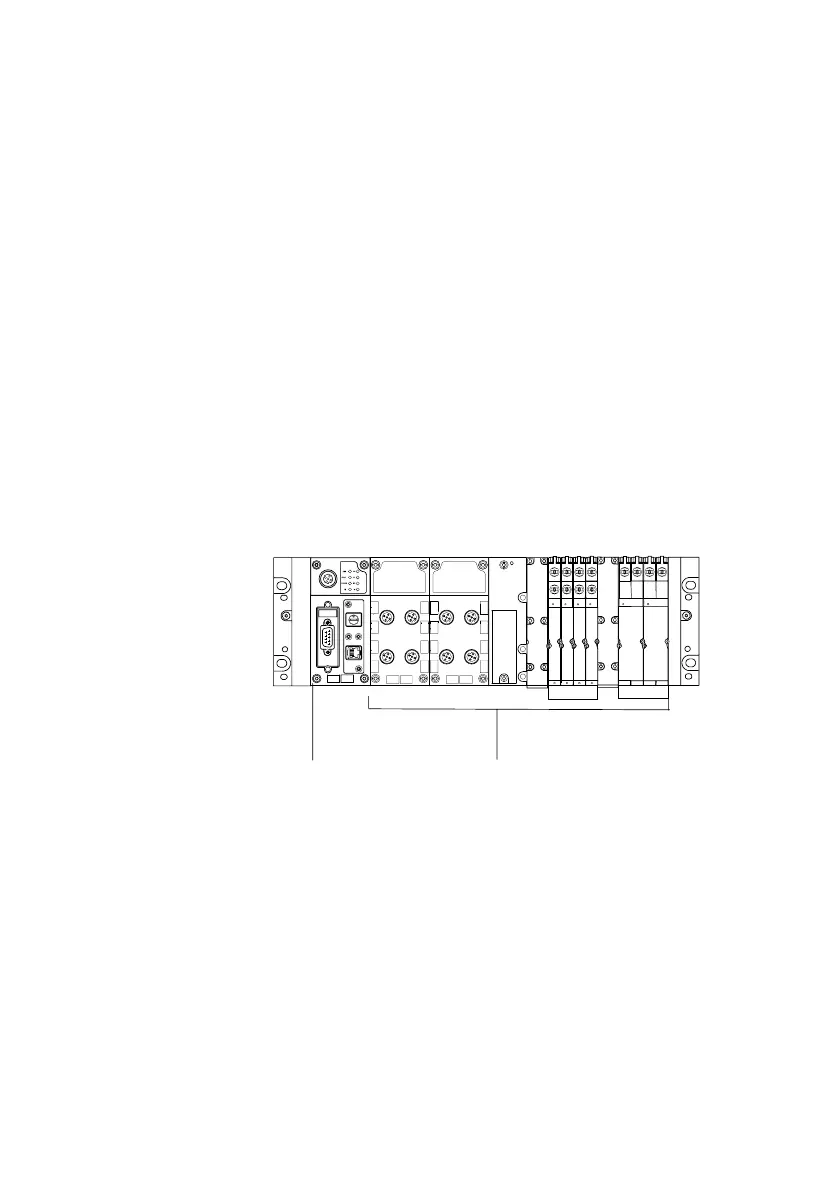

Fig.1/1: Stand Alone operating mode
