2.2 Dismantling and fitting
The controller is fitted in an interlinking block of the CPX
terminal (see Fig.2/1).
2.2.1 Dismantling
Dismantle the controller as follows:
1. Loosen the four screws of the controller with a TORX
screwdriver size T10.
2. Pull the controller carefully and without tilting away from
the contact rails of the interlinking block.
1 CPX−CEC/
CPX−CEC−...
2 Interlinking block
3 Contact rails
4 Screws
3
4
1
2

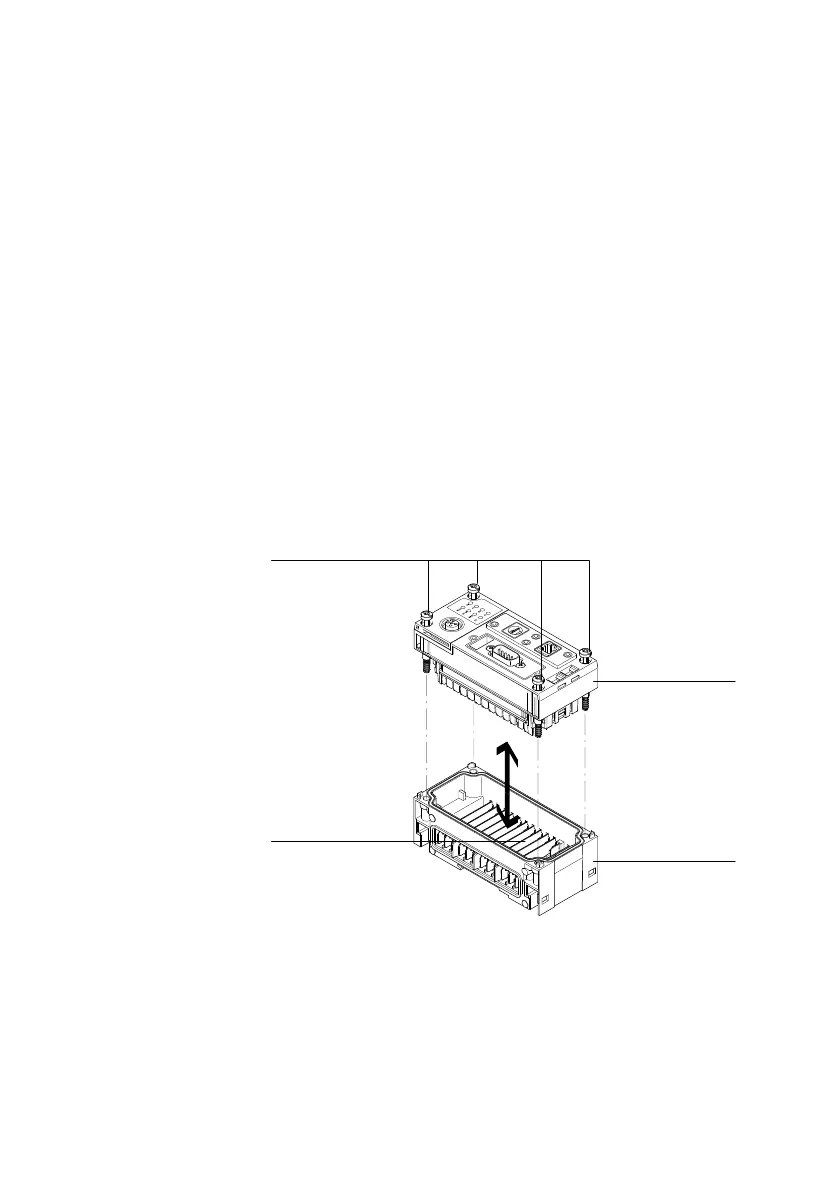

Fig.2/1: Dismantling/fitting of the controller (here CPX−CEC−C1/−M1 as an example)
