Festo CPX-CEC - Connection of an Operator Unit Type FED

2. Installation
2−18
Festo P.BE−CPX−CEC−EN en 1004a
2.7 Connection of an operator unit type FED
The operator unit type FED is a display for operating and
observing automation tasks at the field level.
· Follow the accompanying user documentation when
installing the device.

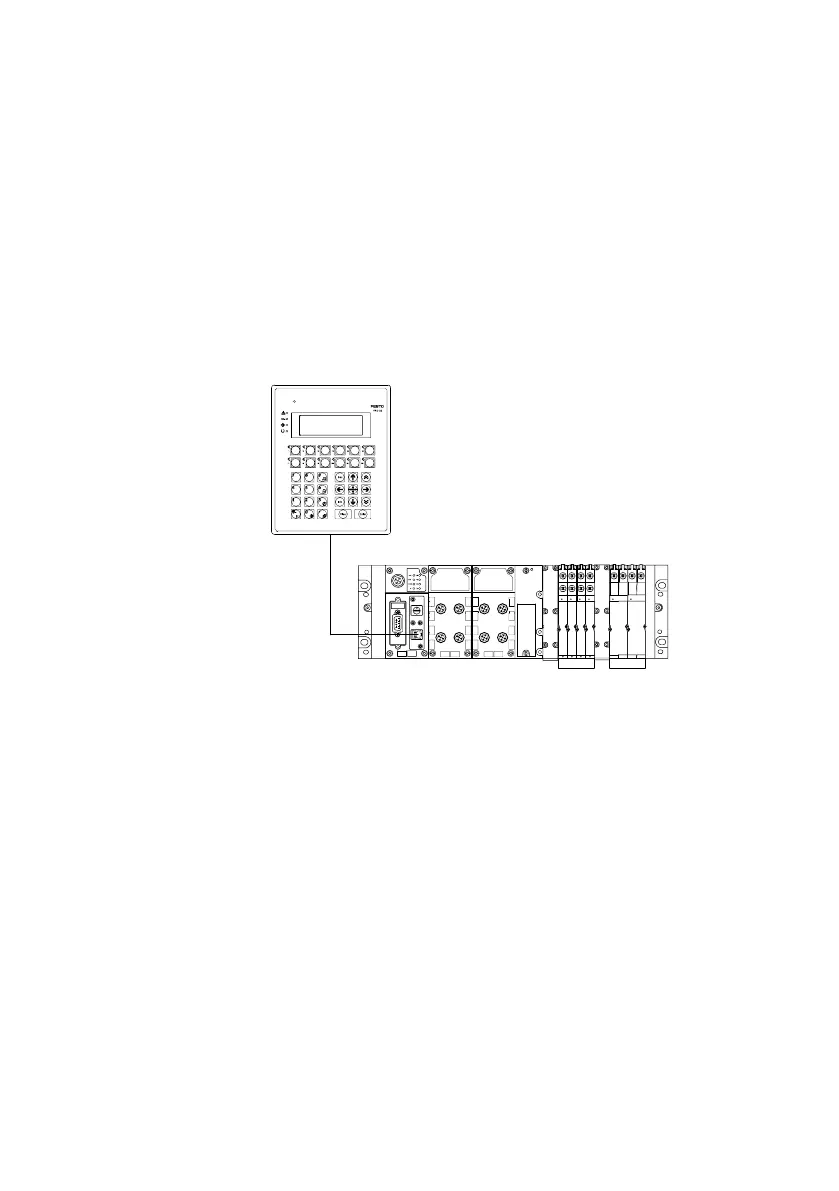

Fig.2/5: CPX terminal with CPX−CEC−C1 and operator unit
type FED incl. optional Ethernet interface
Connect an operator unit of type FED with Ethernet interface
to the CoDeSys controller using an Ethernet cable. With the
CPX−CEC, connection can also take place over the RS232
interface.
