1. System summary
1−8
Festo P.BE−CPX−CEC−EN en 1004a

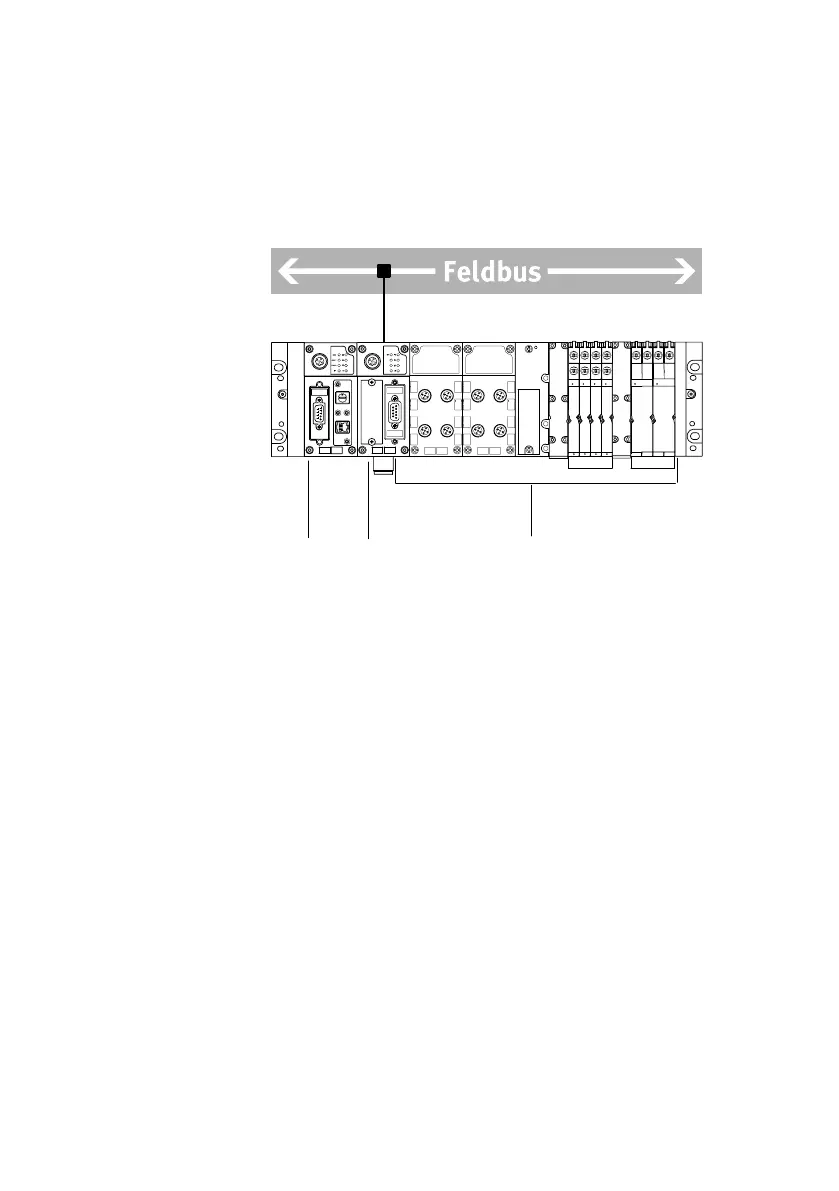

Remote Controller Fieldbus operating mode
21 3
1 CPX−CEC/CPX−CEC−... connected to the fieldbus for
communication over the fieldbus node
2 CPX fieldbus node, here: CPX−FB13
3 CPX terminal controlled by the CPX−CEC/CPX−CEC−...
Fig.1/3: Remote Controller Fieldbus operating mode
(fieldbus node required)
