2. Installation
2−11
Festo P.BE−CPX−CEC−EN en 1004a
Note
If the CPX terminal is fitted onto a moving part of a
machine, the Ethernet cable on the moving part must be
provided with strain relief.
Network connection In order to connect your CoDeSys controller to a network or
PC, you will require a patch or crossover cable. The interface
automatically recognises which
cable is connected and
automatically converts the signals.
Note
Use the RJ−45 plug from Festo in order to comply with the
protection class IP65/IP67:
Type FBS−RJ45−8−GS
Observe the fitting instructions for the plug.

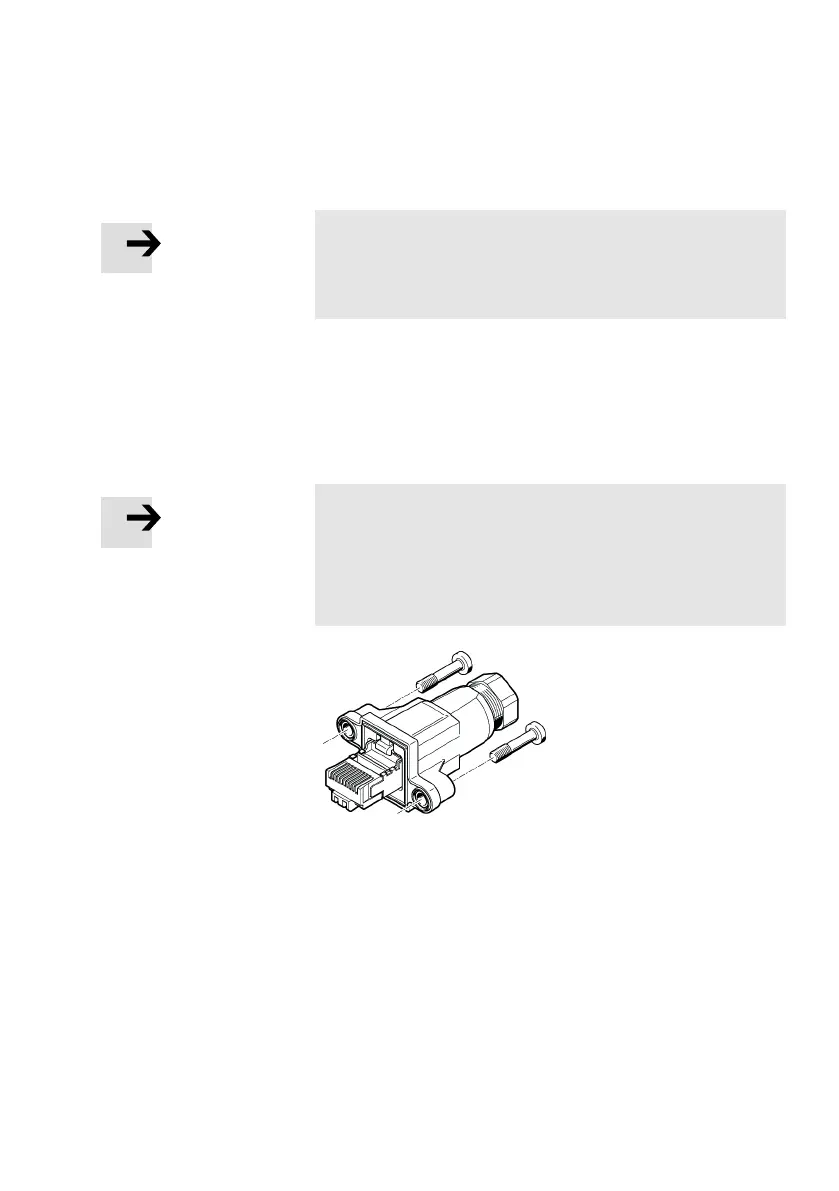

Fig.2/3: RJ−45 plug type FBS−RJ45−8−GS
