4. Commissioning
4−12
Festo P.BE−VTSA−44−EN en 0509NH
Please note
The locking actuation of the manual override is only
possible if a manual override cap is not fitted.

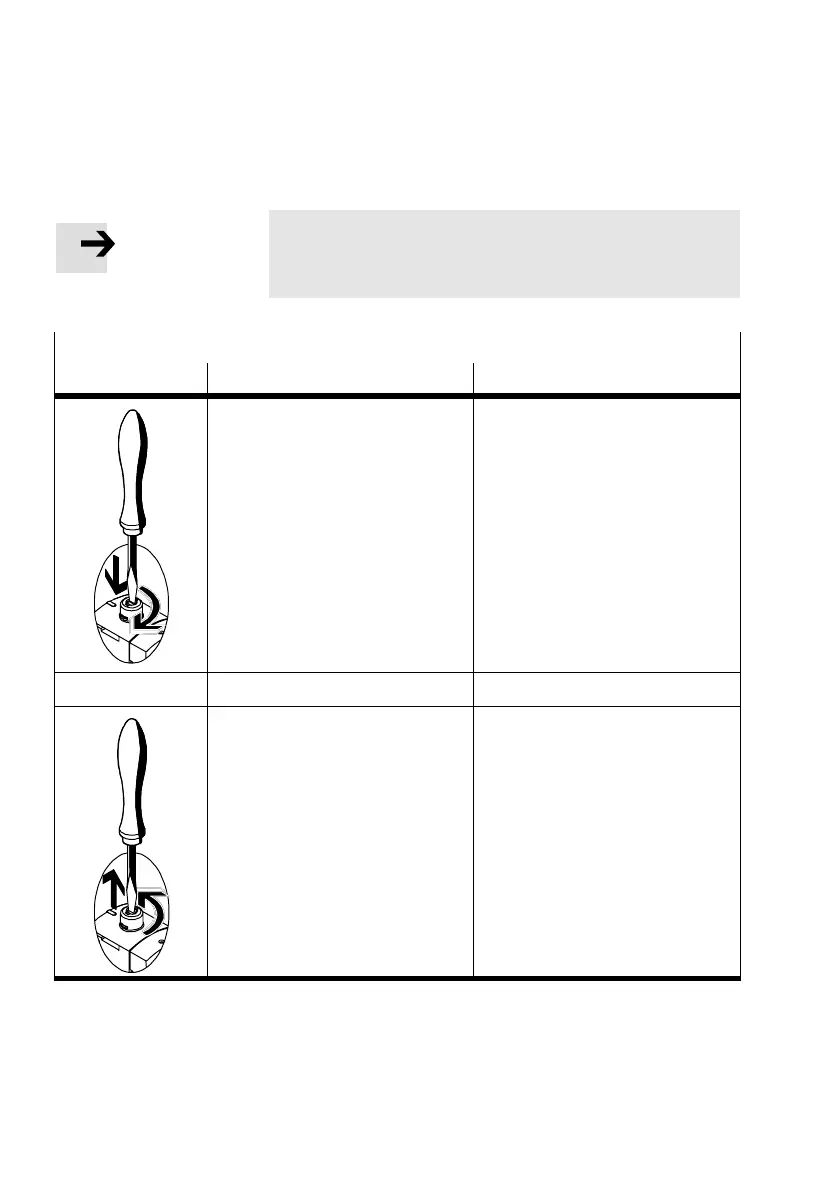

Locking actuation of the manual override (manual reset)
Operation Valve response
· Use a screwdriver (max. blade
width 4 mm) to press down the
plunger of the manual override
until the valve switches.
· Then turn the plunger in a clock
wise direction as far as possible.
The valve:
moves to the switching position
· Leave the plunger in position. remains in the switching position
· Then turn the plunger in an
anti−clockwise direction as far as
possible.
· Then release the plunger.
returns to basic position (not with
double−solenoid valve (identifier
B52 / D52)
Tab.4/5: Turning/locking actuation of the manual override
