2. Fitting
2−7
Festo P.BE−VTSA−44−EN en 0509NH
Variant Fastening possibility
1
VTSA valve terminal with CPX terminal
22
Hole for hat rail
Clamping units:
1 In the pneumatic interface
under the inscription field
2 In the end plates
1
VTSA valve terminal with multipin node
2
Hole for hat rail
Clamping units:
1 In the multipin node
2 In the right−hand end plate

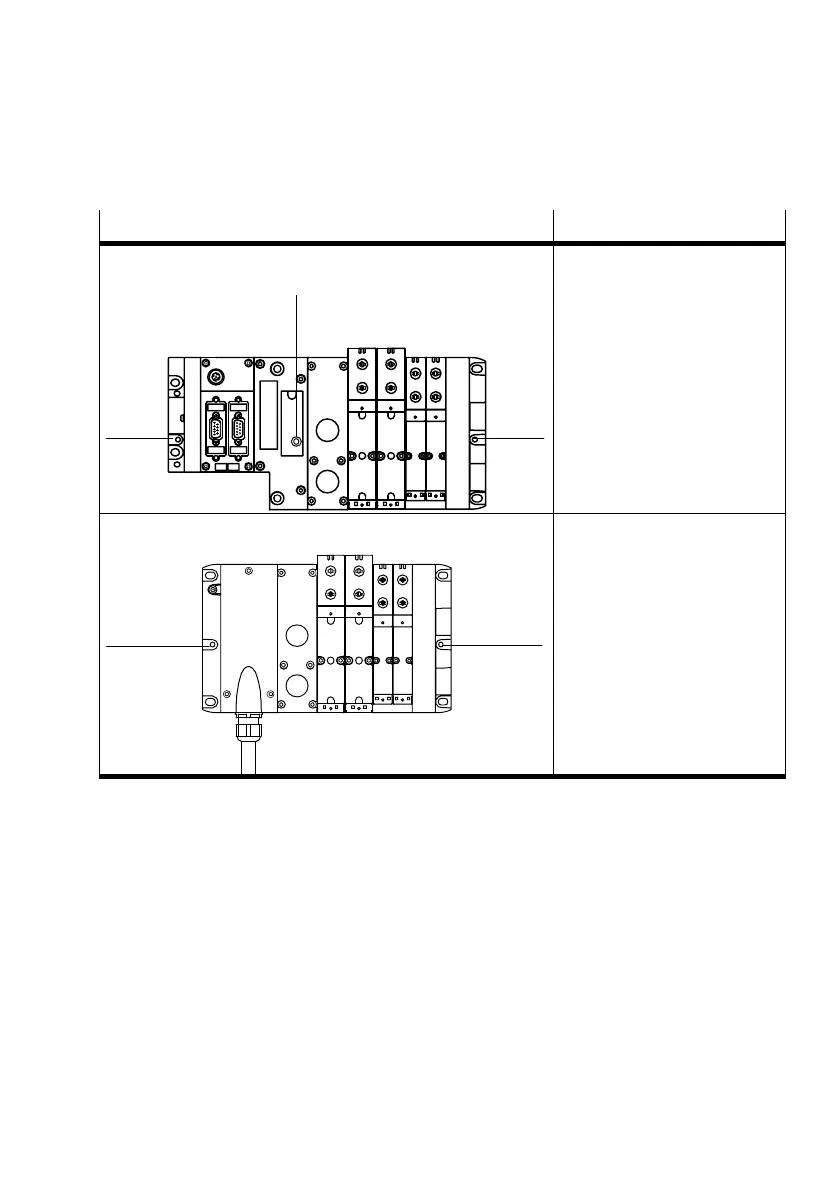

Tab.2/2: Holes for the hat rail clamping unit
Fitting Proceed as follows:
1. Make sure that the fastening surface can support the
weight of the MPA valve terminal (weights see appendix A,
Tab.A/1).
2. Fit the hat rail (support rail EN 60715 35x7.5; width
35mm, height 7.5 mm). Make sure there is sufficient
space for connecting the
supply cables and tubing.
3. Fasten the hat rail to the fastening surface at intervals of
approx. every 100 mm.
