Festo VTSA-FB - Description of Components

1. Summary of components
1−6
Festo P.BE−VTSA−44−EN en 0509NH
1.1.2 Description of components
The VTSA valve terminal consists of the following pneumatic
components:
12 3 4
5
6
8
7
9aJ6
aAaB
1 Exhaust plate
2 Cover plate for valve location
(optional)
3 Valves
4 Exhaust cover
5 Right−hand end plate
6 Pneumatic supply plates (optional)
7 Pressure regulator plate (optional)
8 Vertical pressure cut−off plate (optional)
9 Sub−base with angled connections
(optional)
aJ Vertical supply plate (optional)
aA Throttle plate (optional)
aB Manifold sub−base

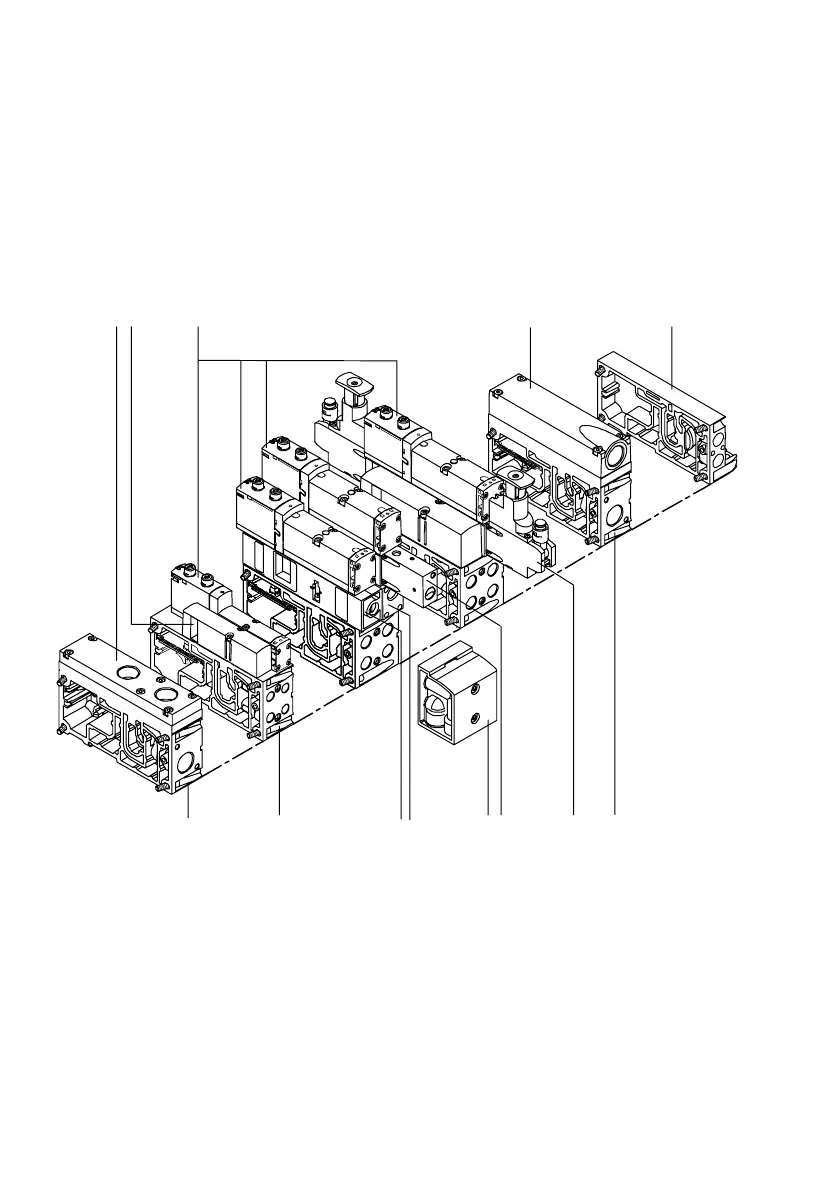

Fig.1/1: Pneumatic components of the VTSA valve terminal
