1. Summary of components
1−5
Festo P.BE−VTSA−44−EN en 0509NH

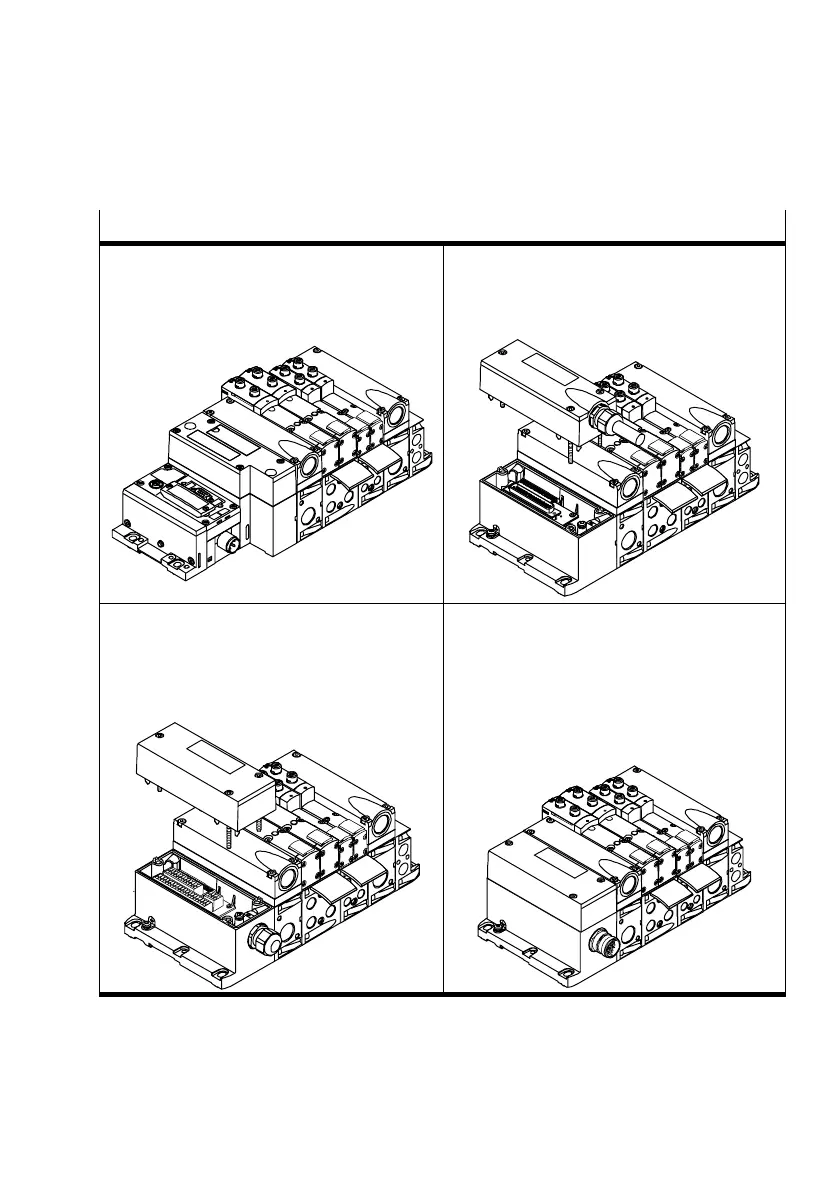

Electrical connection variants
VTSA valve terminal with CPX terminal:
The valves are controlled via the CPX field
bus.
Multipin node Sub−D:
The valves are connected electrically by
means of a central multipin socket.
Multipin cage clamp:
The valves are connected electrically by
means of a central cage clamp (terminal
strip)
M23 multipin node round plug:
The valves are connected electrically by
means of a central M23 round plug.
Tab.1/1: Electrical connection variants of the VTSA valve terminal
