1. Summary of components
1−7
Festo P.BE−VTSA−44−EN en 0509NH

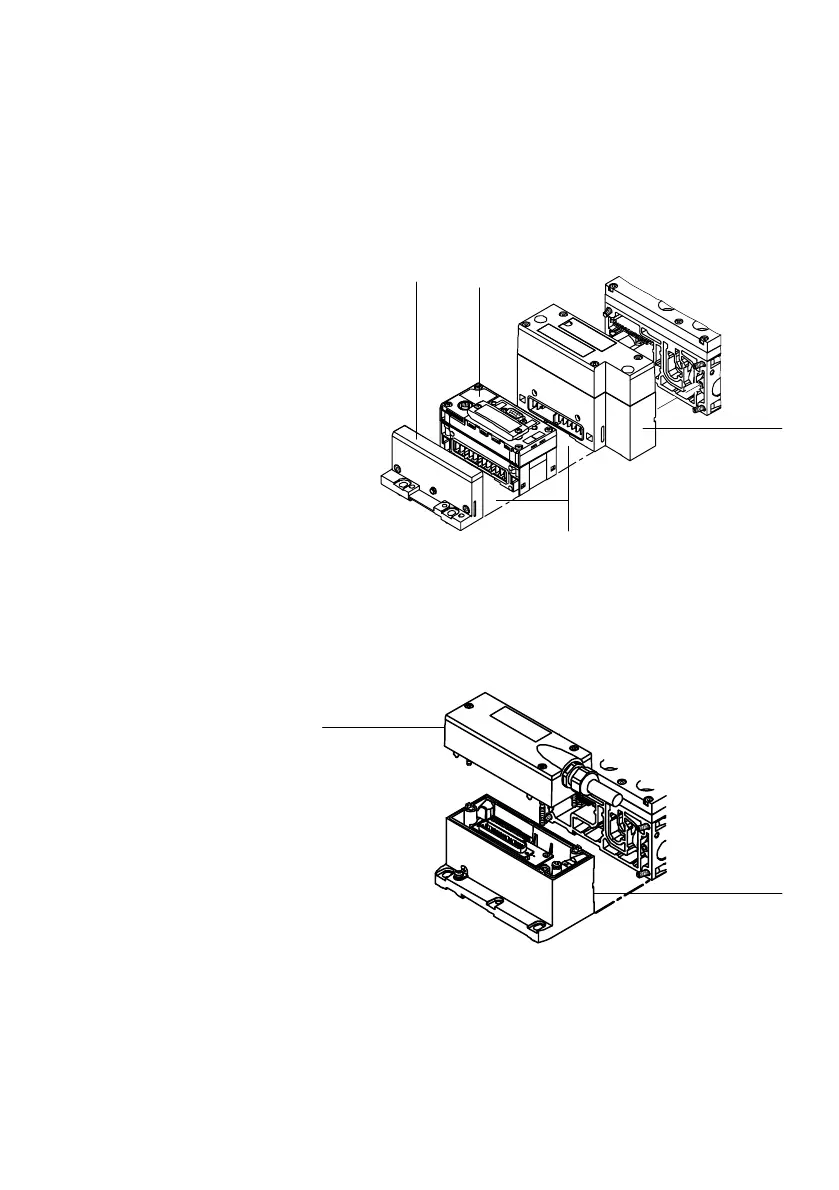

The VTSA valve terminal with CPX terminal consists of the
following electrical components:
1 Left−hand end
plate (CPX)
2 CPX field bus
node
3 Pneumatic
interface
4 Further optional
CPX modules
1
2
3
4
Fig.1/2: Electrical components of the VTSA valve terminal with CPX terminal
The VTSA valve terminal with multipin node Sub−D consists of
the following electrical components:
1 Multipin socket
with cable
2 Multipin node
with Sub−D
connection
1
2
Fig.1/3: Electrical components of the VTSA valve terminal with multipin node Sub−D
