5. Maintenance and conversion
5−10
Festo P.BE−VTSA−44−EN en 0509NH
On valve locations with vertical stacking we recommend the
following sequence of components:
1 Manifold block
2 Optional vertical
supply plate
3 Optional vertical
pressure shut−off
plate
4 Optional throttle
plate
5 Optional pressure
regulator plate
6 Valve
1
2
3
4
5
6

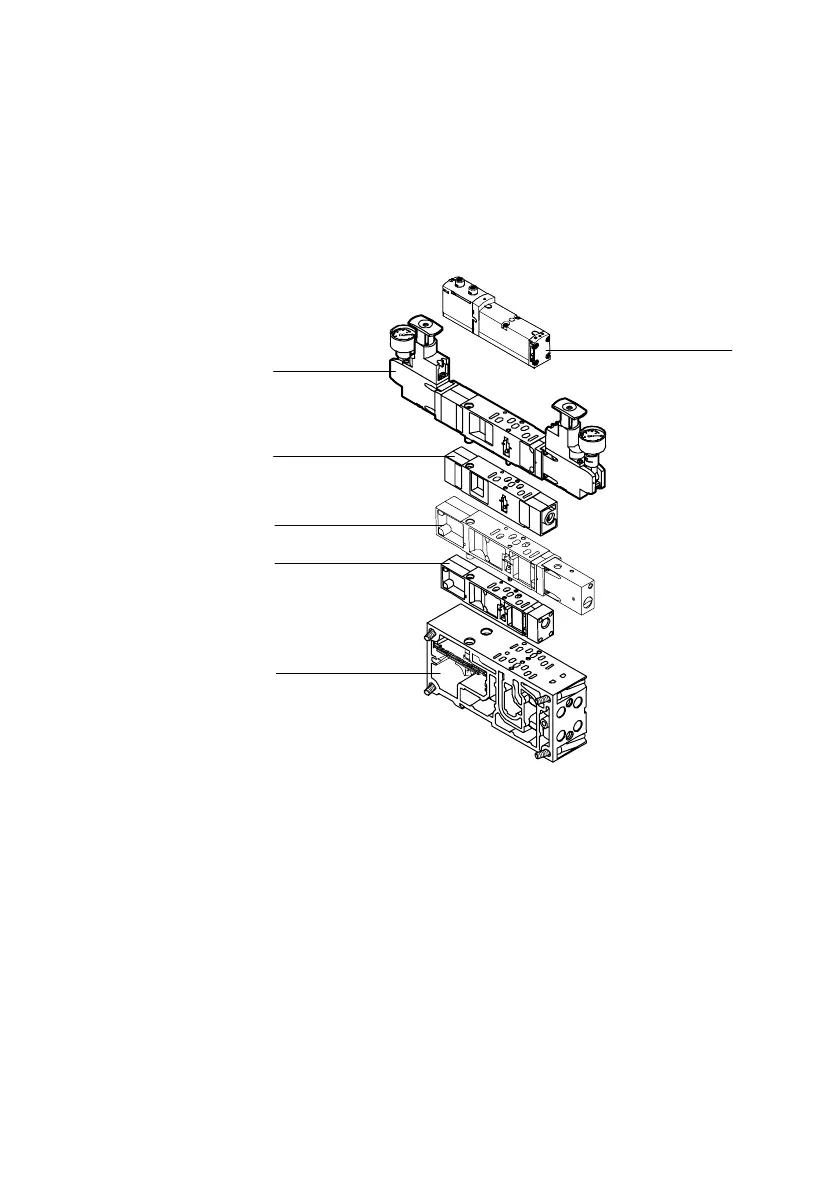

Fig.5/2: Recommended sequence of valve location components
