5. Maintenance and conversion
5−12
Festo P.BE−VTSA−44−EN en 0509NH

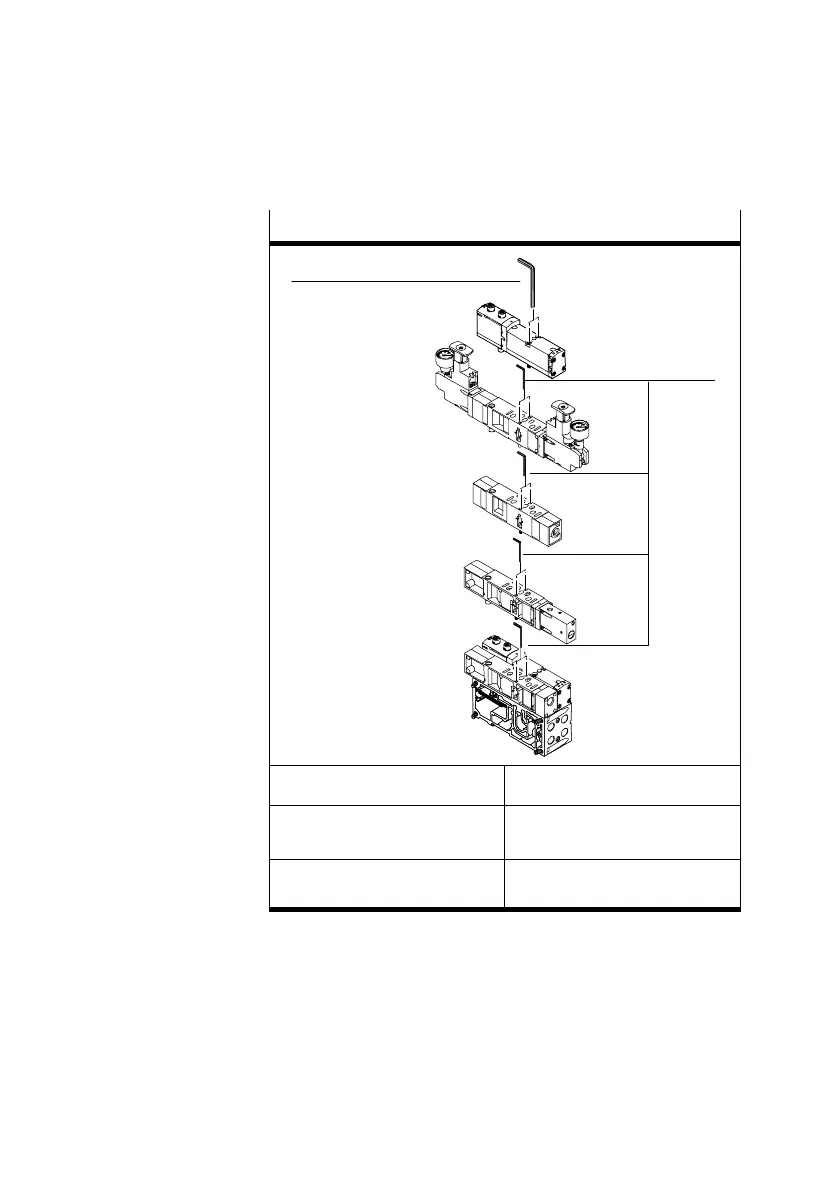

Vertical stacking with pressure regulator plate
1
2
Valve size 18 mm Valve size 26 mm
1 Hexagon socket wrench
Width across flats 2.5
1 Hexagon socket wrench
Width across flats 3
2 Hexagon socket wrench
Width across flats 2
2 Hexagon socket wrench
Width across flats 2.5
Tab.5/2: Vertical stacking
4. Fit the removed components in the same manner as
before.
