5. Maintenance and conversion
5−15
Festo P.BE−VTSA−44−EN en 0509NH
Fitting Proceed as follows:
1. Make sure the seals are not damaged. Replace the seals if
they are damaged.
2. Place the sealing plate onto the guide pins of the manifold
block or of the pneumatic supply plate (sealing plates
with channel separation see chapter 3.3.3).

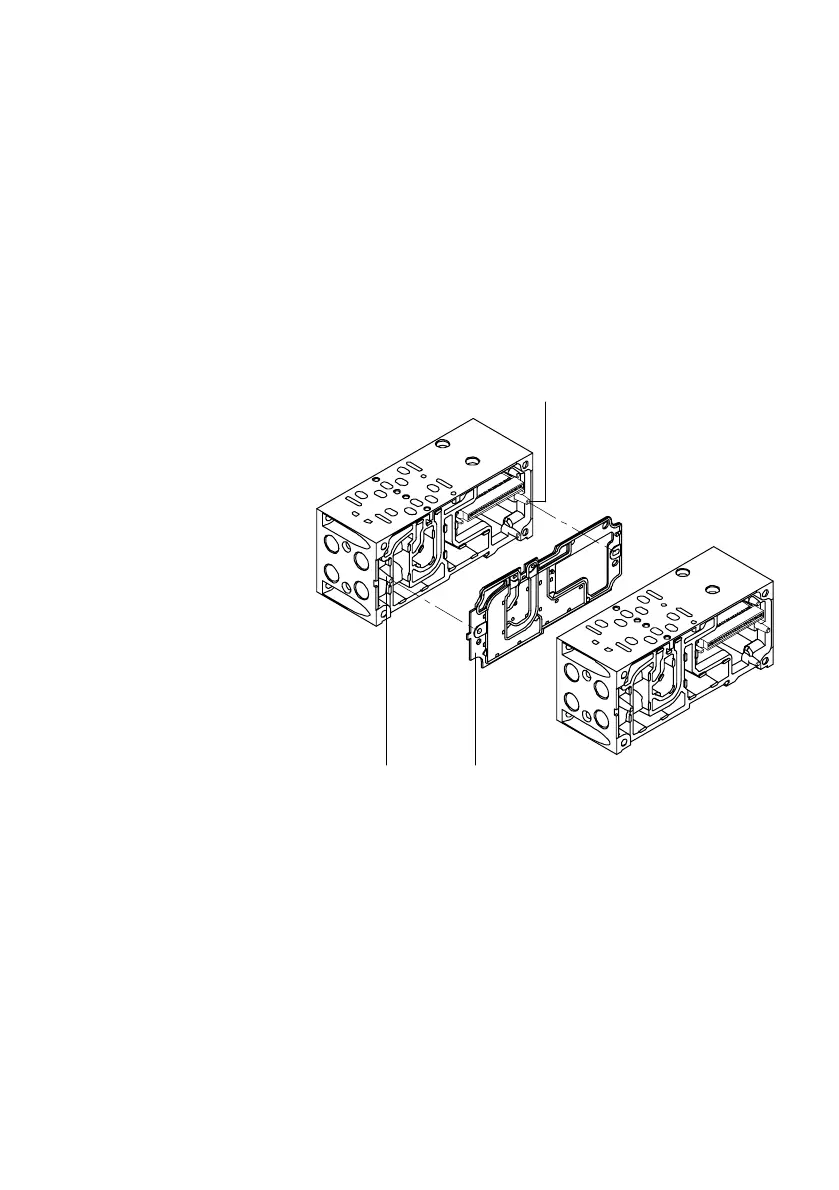

1 Guide pins
2 Sealing plate
(optional with
channel
separation)
2
1
1
Fig.5/4: Fitting manifold blocks
