Festo VTSA-FB - Page 138

A. Technical appendix
A−10
Festo P.BE−VTSA−44−EN en 0509NH
1 Pressure
2 Characteristic
curve for
AB−pressure
regulator plate of
size 26 mm
3 Flow rate
4 Characteristic
curve for
AB−pressure
regulator plate of
size 18 mm
1
2
3
4
qn [l/min]

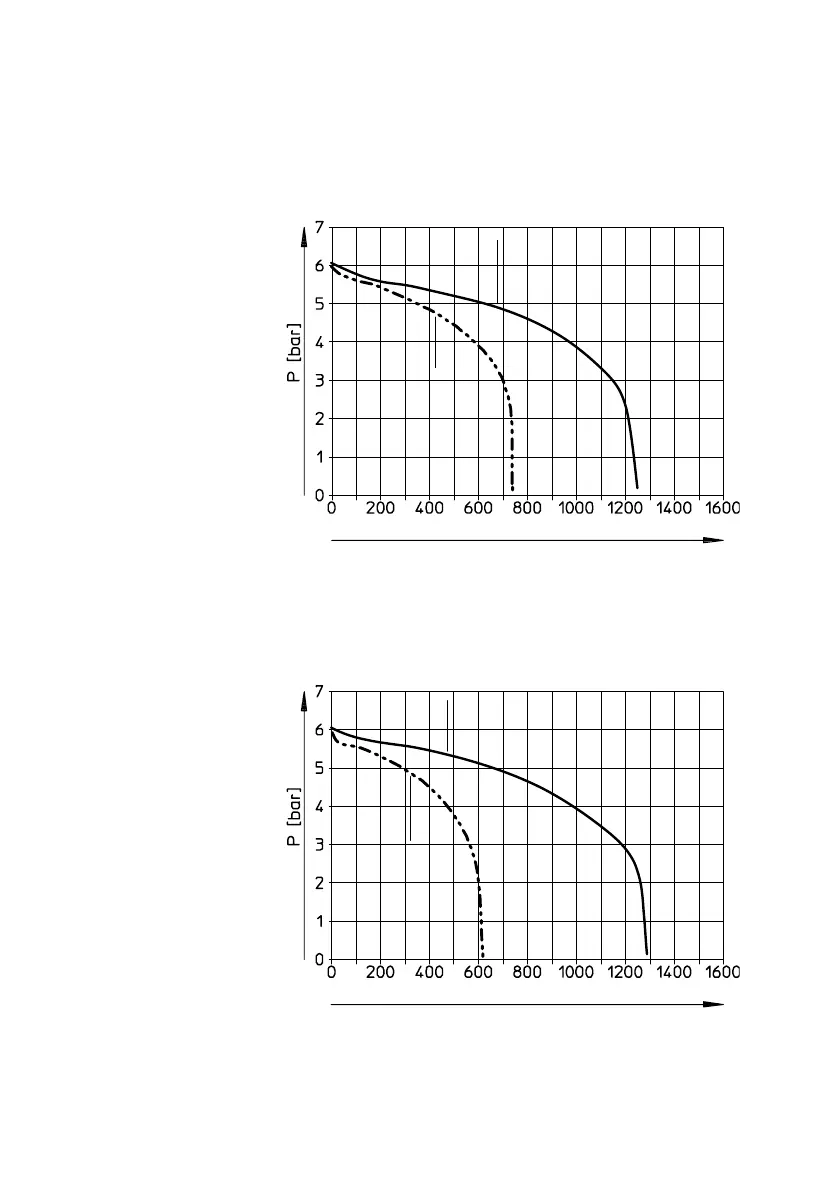

Fig.A/3: Diagram: Flow as a factor of pressure regulation (A, B and AB pressure
regulator plates with identifier R2, R3 and R4)
1 Pressure
2 Characteristic
curve for
AB−pressure
regulator plate of
size 26 mm
3 Flow rate
4 Characteristic
curve for
AB−pressure
regulator plate of
size 18 mm
1
2
3
4
qn [l/min]
Fig.A/4: Diagram: Flow as a factor of pressure regulation (reversible AB pressure
regulator plates with identifier R5)
