1. Summary of components
1−14
Festo P.BE−VTSA−44−EN en 0509NH
You can ascertain the end plate with which your VTSA valve
terminal is fitted with the aid of the following table.

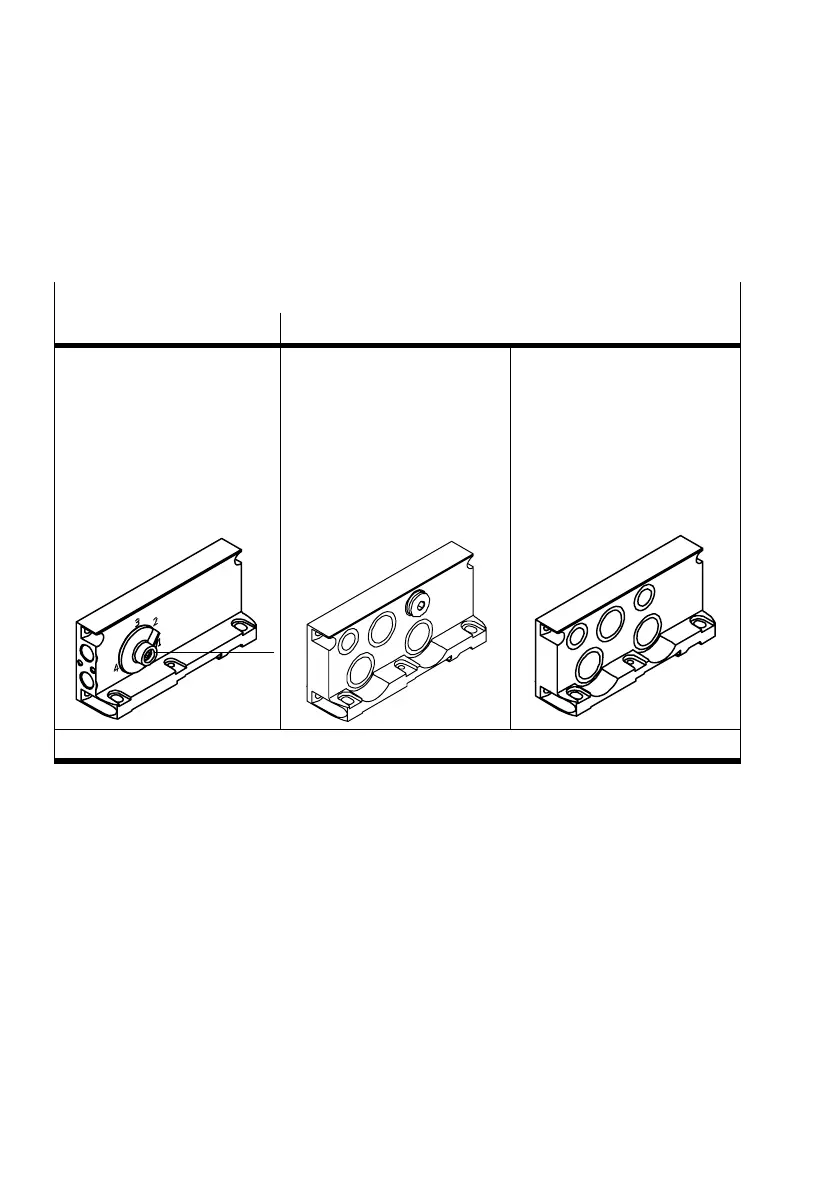

Variants of the right−hand end plate
Selector end plate End plates with axial supply connections
Type VABE−...RZ−...B1. With this
end plate, the type of pilot
control (internal or external
pilot air) and the type of
removal of pilot air or
breathable air (ducted or
non−ducted) can be selected
via code cover 2.
1)
2
Type VABE−...R−...
End plate for operating the valve
terminal with internal pilot air.
1)
Type VABE−...RZ−...
End plate for operating the
valve terminal with external
pilot air.
1)
1)
Notes on adjusting the code cover or on fitting the end plates see chapter 3.3.2
Tab.1/4: Variants of the right−hand end plate
Vertical stacking
In each valve location you can fit further pneumatic compo
nents between the manifold sub−base and the valve. This
vertical stacking will enable you to implement certain addi
tional effects as desired. The following diagram shows the
available components:
