2. Fitting
2−9
Festo P.BE−VTSA−44−EN en 0509NH
1 Hat rail
2 Clamping element
of the hat−rail
clamping unit
1
2

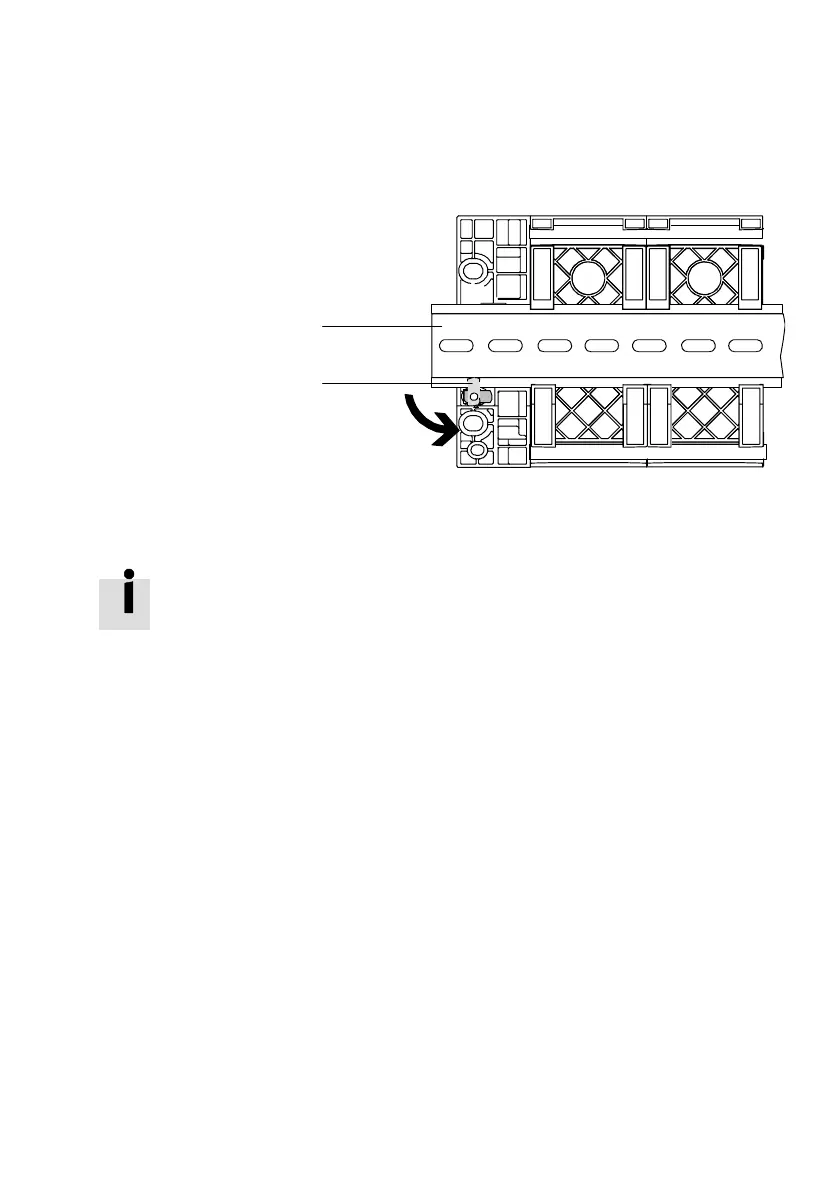

Fig.2/2: Rear view: Fitting the CPX terminal as example onto a hat rail
Further instructions on fitting the VTSA valve terminal with
CPX terminal onto a hat rail can be found in the CPX system
manual.
Dismantling Proceed as follows:
1. Loosen the locking screw of the hat rail clamping unit
(position of the screws see Tab.2/2).
Make sure that the
clamping element lies horizontally to the hat rail.
2. Swing the VTSA valve terminal forwards from the hat rail
(see Fig.2/3, arrow (B)).
3. Lift the valve terminal off the hat rail
(see Fig.2/3, arrow (A)).
