Observe the following instructions on installing the pneu
matic components. Only then can you guarantee faultless
operation.
Please note
In the case of several systems with centrally ducted
exhaust air:
· Use non−return valves in the exhaust tubing or pilot air
tubing in order to prevent functional impairment due to
back pressures.
1 Valve terminal 1
2 Exhaust tubing
3/5
3 Central pilot
exhaust
4 Central exhaust
tubing 3/5
5 Valve terminal 2
6 Pilot air exhaust
tubing
1
2
34 5
6
6
2
2

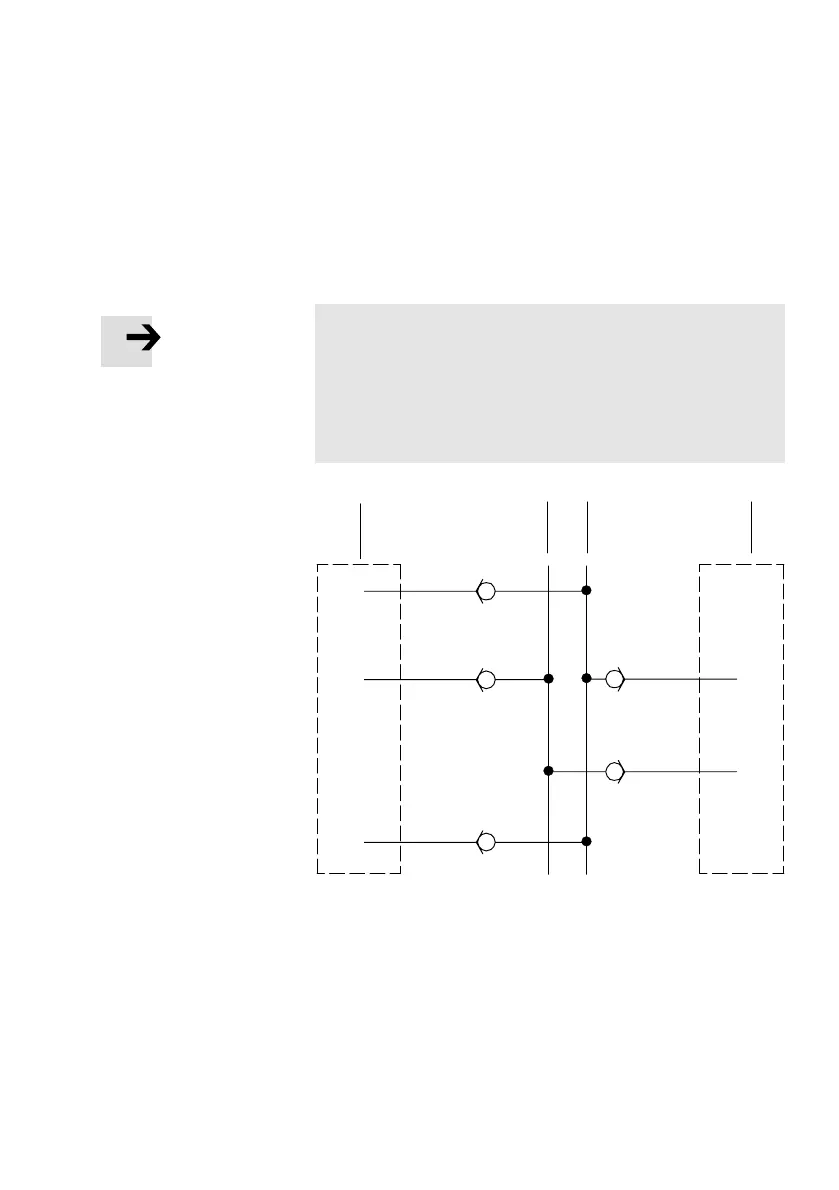

Fig.3/6: Centrally ducted exhaust with non−return valves
