3. Installation
3−30
Festo P.BE−VTSA−44−EN en 0509NH
0
10
1
2
3
4
5
6
7
8
9
11
7
7
8
8
65
6
4
23 3 33 4
2
1
1
5
1
Addresses of coils 12
2 LED for coil 12
3 LED for coil 14
4 Blanking plate on a valve location
which occupies one address
5 Addresses of coils 14
6 Manifold block which occupies one
address per valve location (identifier:
opaque type plate)
7 Valve with one solenoid coil on a valve
location which occupies two adresses
8 Manifold block which occupies two
addresses per valve location
(identifier: transparent type plate)

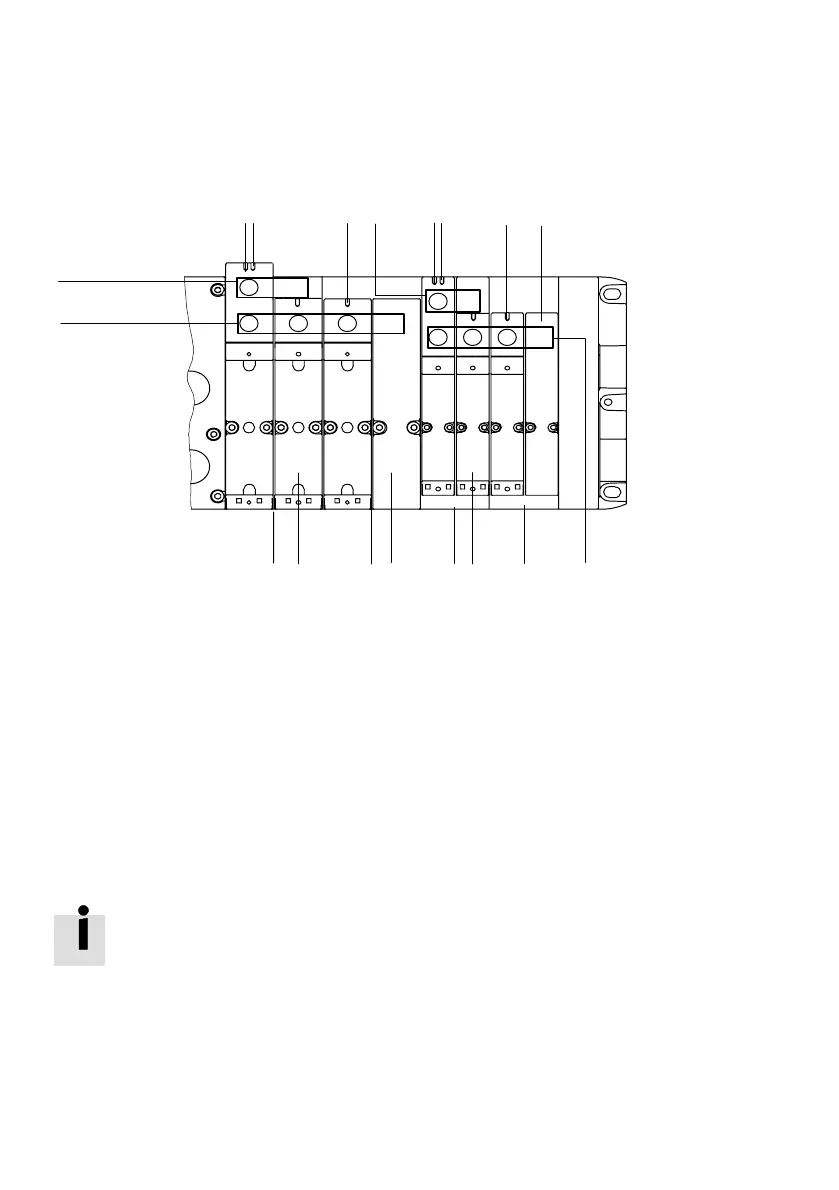

Fig.3/8: Example: Address assignment of VTSA valve terminal with 8 valve locations
(top view)
Further instructions on addressing the VTSA valve terminal
with CPX terminal can be found in the manual for the CPX I/O
modules.
