47

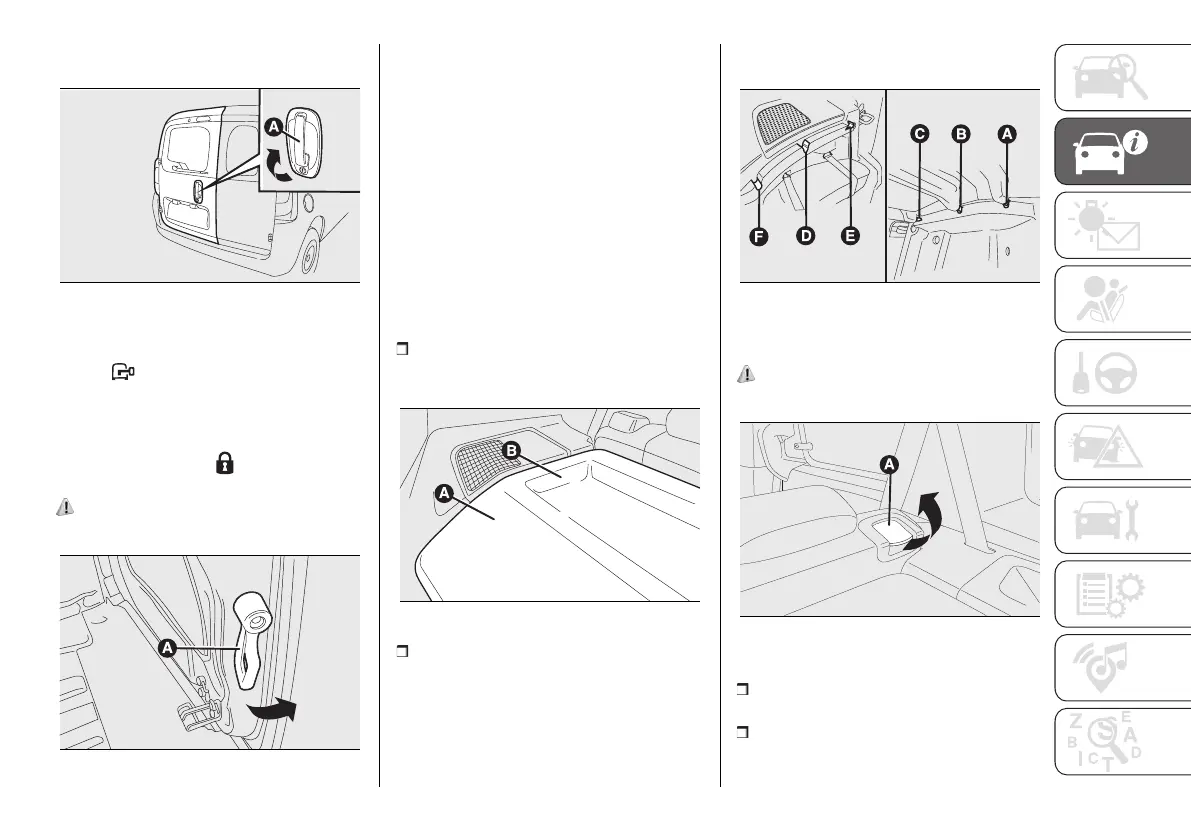

Opening/closing the first swing
door from the outside
75 F0T0140
To open the door, turn the metallic
insert of the key in the lock or press
button on the remote control
and then pull handle (A) fig. 75 in the
direction of the arrow.
To close the door, turn the key in the
lock or press button on the remote
control.
34)
Opening the second swing door
76 F0T0142
After having opened the first door, pull
handle (A) fig. 76 in the direction shown
by the arrow.
WARNING Pull handle (A) fig. 76 in the
direction of the arrow only.
REMOVING THE PARCEL
SHELF
(Fiorino Combi and Qubo versions)
The parcel shelf fig. 77consists of
two parts. To remove it completely,
proceed as follows:
open the rear swing doors; lift the
front part (A) fig. 77 releasing the pin (A)
fig. 78 from the housing (F) fig. 78;
77 F0T0062
lift the rear part (B) fig. 77 releasing
the pins (B) and (C) fig. 78 from the
housing (D) and (E) fig. 78;
If the seat is completely folded down,
remove the parcel shelf as described
and store it horizontally between the
back of the front seats and the folded
rear seat.
78 F0T0456
To refit the parcel shelf, follow the same
procedure in reverse.
35)
EXTENDING THE BOOT
79 F0T0921
Proceed as follows:
open the rear doors and remove the
parcel shelf (as described previously);
completely lower the rear seat head
restraints;
