KNOWING YOUR VEHICLE
48
move the seat belt to the side,
making sure that it is fully extended and
not twisted;

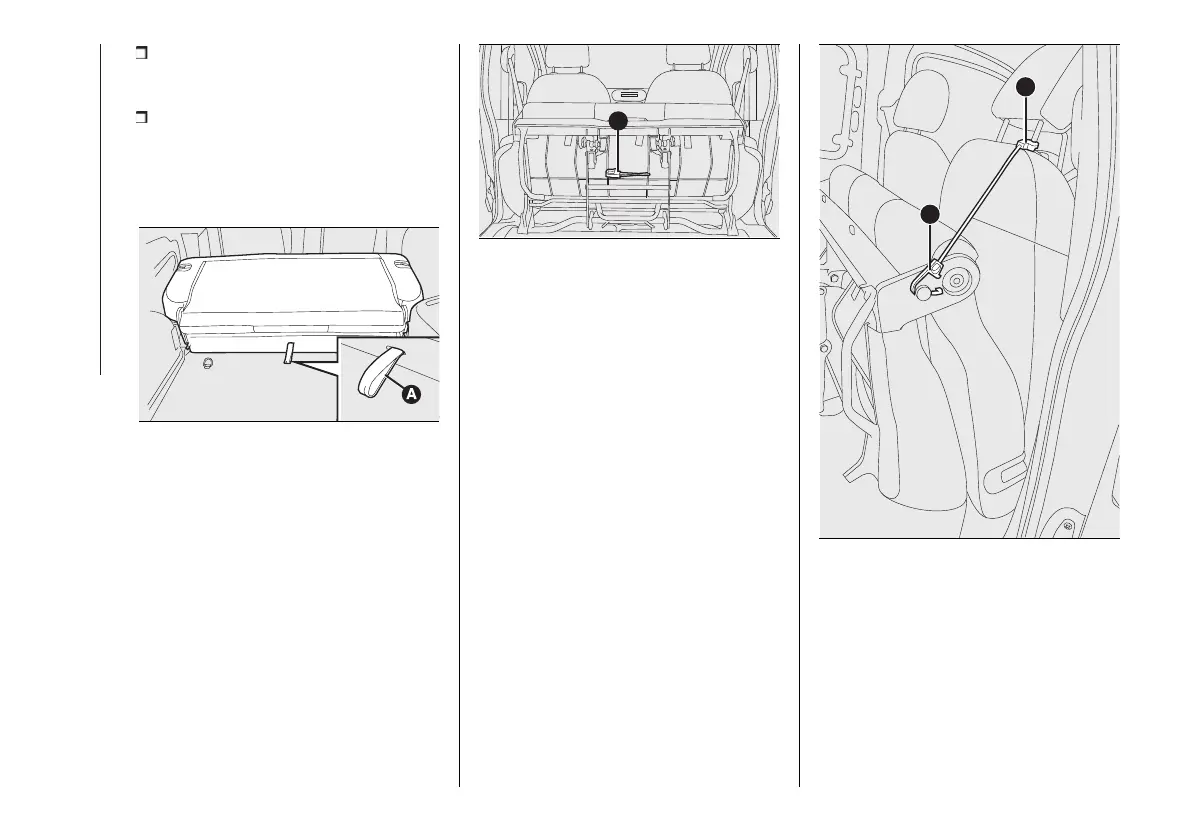

lift backrest retainer lever (A) fig. 79
and fold the backrest forwards to
obtain a flat loading area. When you lift
the lever, you will see a red band.
Versions with single rear seat
80 F0T0416
To further expand the boot, pull tab (A)
fig. 80 located behind the rear backrest
and tip seat and backrest forward.
Qubo versions: To fix the seat, take
the red cords (A) shown in fig. 81 and
fix the ends of the cords in position (A)
and (B) as in fig. 82.
81 F0T0445
82 F0T0446
