HANDLING THE PACKAGED MACHINE
The overall dimensions of the entire package are: length = 2030mm width = 1280mm height = 1605mm while the overall mass of the package
is 535Kg.
N.B.: it is recommended that all the packaging components be kept for any future machine transportation.
DANGER: move the packaged product with handling equipment that complies with legal requirements regarding size and mass
of the packaging.
11

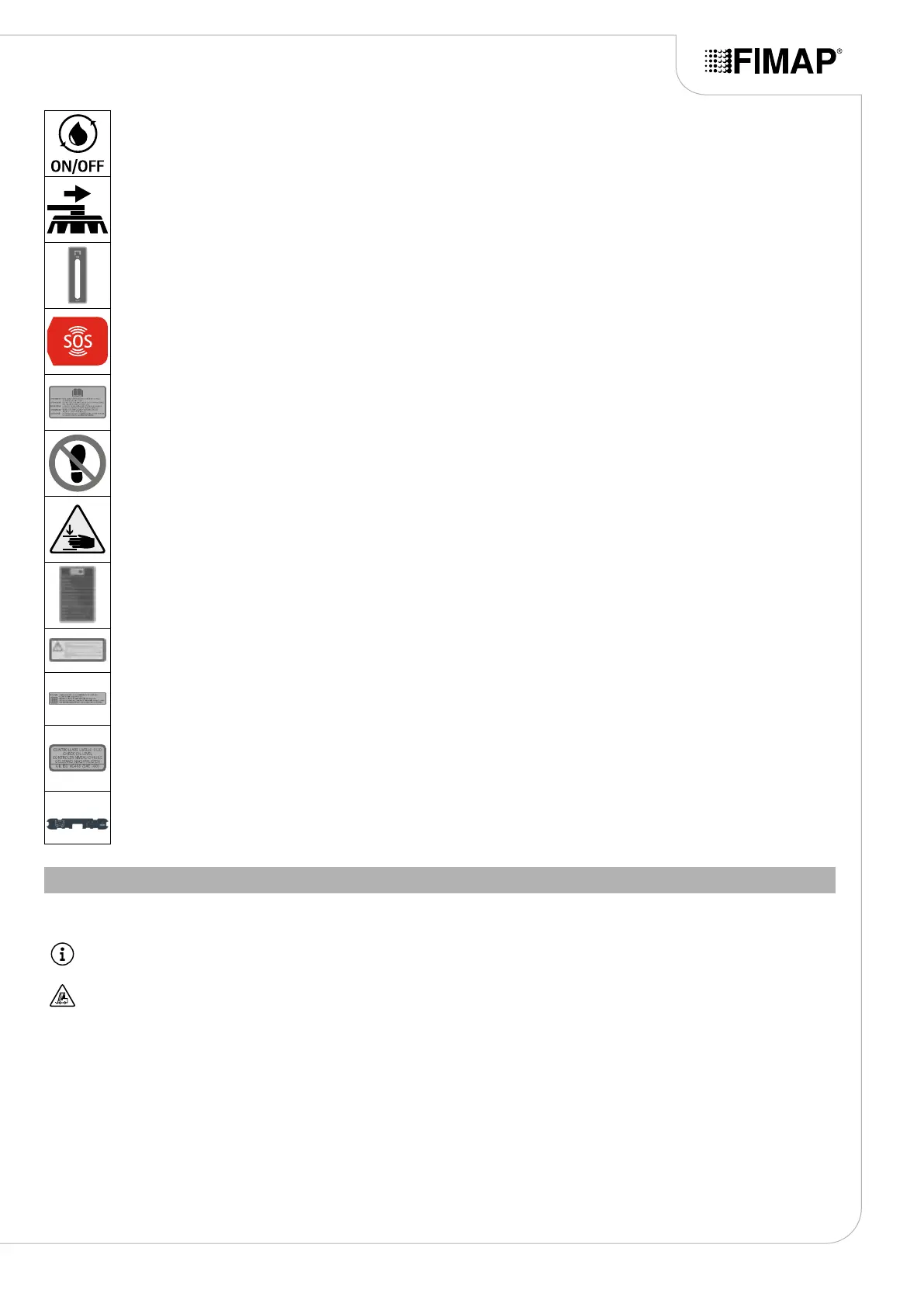

Label for the detergent solution automatic recycling system control (optional):
Applied near the steering column to indicate the button for activating or switching o󰀨 the optional detergent solution automatic
recycling system kit.
Label for the side brush control (optional):
Applied near the steering column to indicate the button for activating or switching o󰀨 the side brush control system.
Label for detergent solution tap command:
Applied in the vicinity of the control column to identify the detergent solution tap's control lever.
FFM alarm activation label (optional):
Applied in the vicinity of the emergency mushroom button, to identify the button activating a request for assistance.
Label indicating the need to read the Use and Maintenance Manual:
Applied in the vicinity of the steering column in order to remind the operator to read the user and maintenance manual before
using the machine.
Treading ban label:
Located on the machine, to identify the surfaces that must not be trodden on (risk of personal injury or damage to the machine).
Label warning about the risk of crushed hands:
Indicates danger to hands due to crushing between two surfaces.
Warning label:
A󰀩xed to the machine in order to warn the operator to read the user and maintenance manual (this document) before using
the machine for the rst time. Also indicates the applicable procedures for properly caring for the machine itself.
Solution tank lter daily care warning label:
Applied to the machine to remind the operator to clean the solution tank after each use.
Suction motor lter label:
Applied inside the vacuum cover to identify the suction motor intake air lter, and also serves to remind the operator to clean
the lter after each machine use.
Braking system oil level check label:
Located near the braking system oil basin, to remind the operator to check the level of oil in the basin.
The bottom part of the label shows the recommended oil for the braking system.
1
1
1
2
2
3
3
4
4
Vacuum wand optional accessories kit position label:
Applied above the recovery tank cover to identify and position the accessories of the vacuum wand optional kit.
