Fimap MAGNA - Technical Data and Machine Components; Technical Data Table

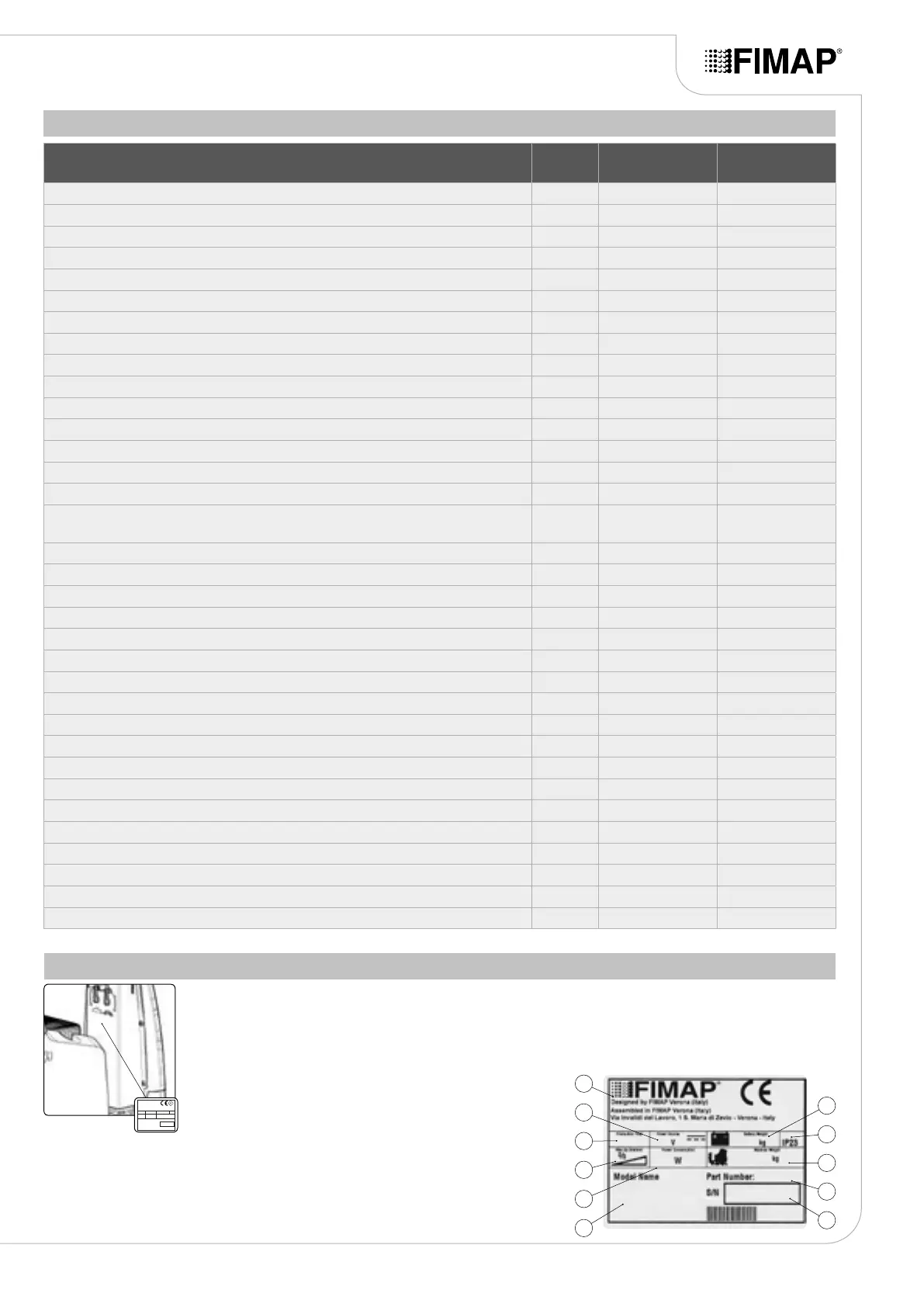

SERIAL NUMBER PLATE
The serial number plate is located at the rear of the steering column, and indicates the machine's general
characteristics, including its serial number. The serial number is a very important piece of information and should
always be provided together with any request for assistance or when purchasing spare parts. The serial number plate
contains the following:
1. The weight of the batteries used to power the appliance (expressed in Kg).
2. The IP protection rating of the appliance.
3. The gross weight of the appliance (expressed in Kg).
4. The identication code of the appliance.
5. The serial number of the appliance.
6. The name of the appliance.
7. The nominal power consumed by the appliance (expressed in W).
8. The maximum grade that the appliance can handle during work activities (expressed in %).
9. The year in which the appliance was manufactured.
10. The nominal voltage of the appliance (expressed in V).
11. The commercial name of the appliance and the manufacturer's address.
11
10
9
8
7
6
1
2
3
4
5
TECHNICAL DATA
TECHNICAL DATA
SI
[KMS]
Magna
Magna
Cylindrical
Nominal input power [IEC 60335-2-72; IEC 62885-9] kW 3,05 3,05
Working capacity up to m
2
/h 3150 2888
Working width [IEC 62885-9] mm 900 825
Working width with the lateral brush mm 1050 1220
Squeegee width mm 1045 1045
Nominal power of brush motor/s [IEC 62885-9] W 750 750
Total width of brushes [IEC 62885-9] No. / mm 2 / Ø460 2 / (Ø210 / 800)
Number of rotations of single brush head brush rpm 180 550
Nominal power of side brush motor(s) W 200 90
Total width of side brushes No. / mm 1 / Ø290 2 / Ø450
Lateral brush head brush rotations rpm 140 75
Maximum force of central brushes on oor N 1471 441
Maximum force of side brushes on oor N 98 5
Nominal power of traction motor [IEC 62885-9] W 900 DC 900 DC
Maximum transfer speed [IEC 62885-9] Km/h 9 9
Gradeability during transfer with full solution tank only
(maximum period of use 20 seconds)
% 8 8
Gradeability during transfer with both tanks empty % 17 17
Gradeability when working with GVW (maximum period of use 20 seconds) % 8 8
Nominal power of vacuum motor(s) [IEC 62885-9] W 650 650
Maximum vacuum [IEC 62885-9; IEC 60312-1] kPar 20,38 20,38
Solution tank capacity [IEC 62885-9] l 190 190
Recovery tank capacity [IEC 62885-9] l 195 195
Maximum solution tank capacity l 18 18
Maximum debris hopper capacity [IEC 62885-9] l - 16
Minimum inversion corridor [IEC 62885-9] mm 2450 2450
Machine dimensions (length - width - height) mm 1837 - 1085 - 1372 1837 - 1085 - 1372
Battery compartment dimensions (length - width - height) mm 960 - 505 - 400 960 - 505 - 400
Machine net weight [IEC 62885-9] kg 421 421
Machine weight during transport [IEC 62885-9] kg 837 837
GVW [IEC 60335-2-72; IEC 62885-9]
)
kg 1205 1224
Maximum weight of the battery box (recommended) kg 416 416
Sound pressure level (ISO 11201) - L
pa
dB (A) 69 70
Uncertainty K
pa
dB (A) 1.5 1.5
Body vibration level (ISO 2631) m/s
2
0,5 0,5
