OVERFLOW DEVICE
The machine is not equipped with an overow device, because the volume of the recovery tank is greater than the capacity of the
solution tank. In extraordinary cases, there is a mechanical device (oat) under the recovery tank lid that, when the recovery tank is full,
shuts o󰀨 the air to the vacuum motor intake to protect it; the sound of the suction motor will then be deeper. Empty the recovery tank
(see “EMPTYING THE RECOVERY TANK”).

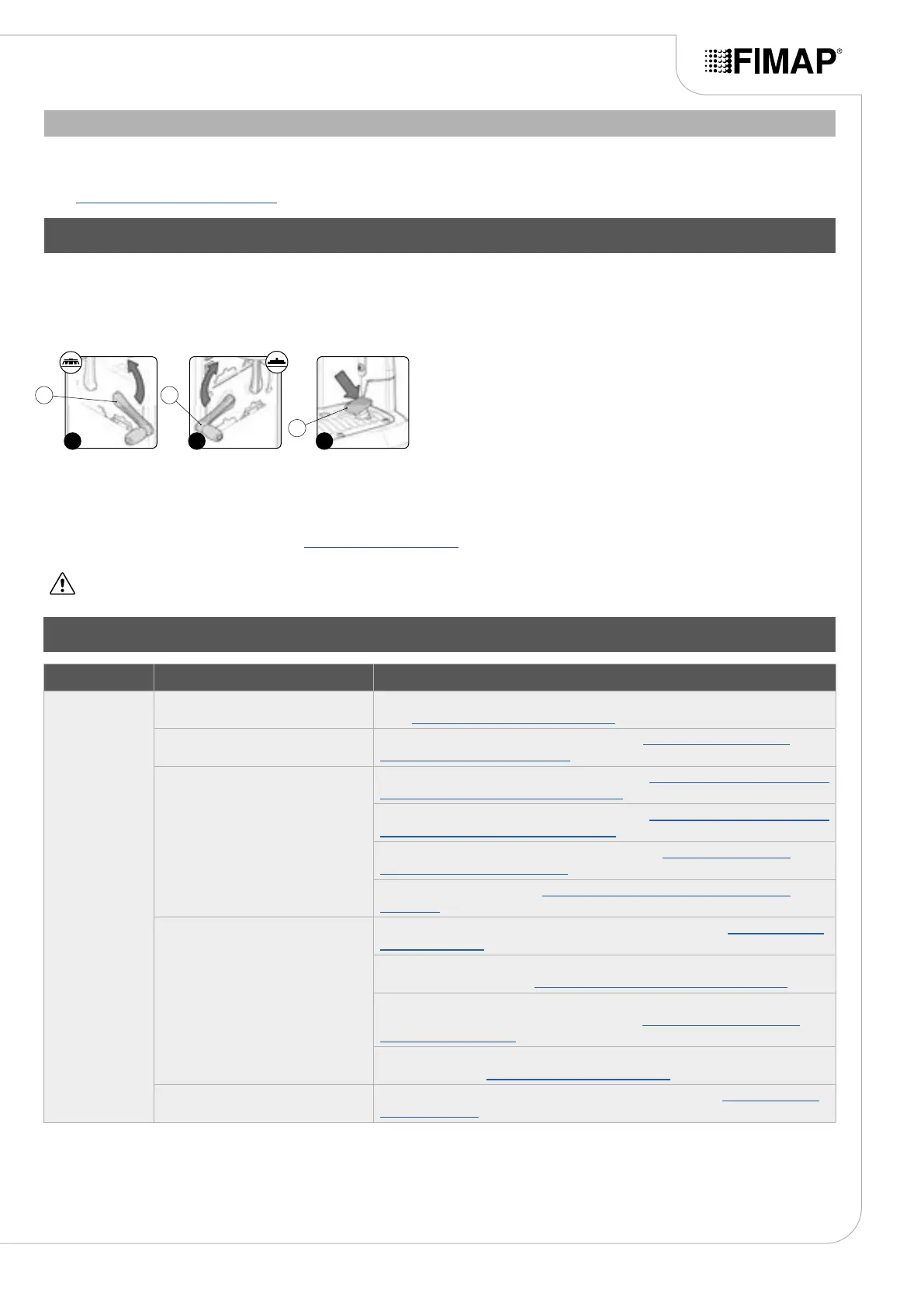

AT THE END OF THE WORK
At the end of the work, and before carrying out any type of maintenance, perform the following operations:
1. Turn the brush head control level (1) anti-clockwise (Fig. 1); in this manner the brush head body will be raised o󰀨 the oor.
2. Turn the squeegee control lever (2) clockwise (Fig. 2) to raise the squeegee body o󰀨 the oor.
3. Press the drive pedal (3) (Fig. 3) to begin moving the machine.
4. Take the appliance to the dedicated dirty water drainage area.
5. Carry out all the procedures listed in the paragraph “RECOMMENDED PERIODIC MAINTENANCE” (in the column “AT THE END OF
THE WORK”).
6. Once the maintenance work is nished take the appliance to the designated storage place.
7. Secure the machine, see the section titled “SECURING THE MACHINE”.
ATTENTION: park the machine in an enclosed place, on a at surface, and at a safe distance from any objects that could either damage
it or be damaged due to contact with the machine itself.
2 31
1 2
3
ROUTINE MAINTENANCE
27
INTERVAL MACHINE COMPONENTS PROCEDURE
DAILY; BEFORE A LONG PERIOD OF INACTIVITY
Squeegee
Clean the vacuum chamber; the squeegee rubber blades; the vacuum nozzle
(see “CLEANING THE SQUEEGEE BODY”).
Debris hopper
Empty the debris hopper and clean inside (see “EMPTYING THE DEBRIS
HOPPER (SWEEPING VERSION)”).
Brush head brushes
Clean the brushes on the brush head body (see “CLEANING THE BRUSH HEAD
BODY BRUSHES (SCRUBBING VERSION)”).
Clean the brushes on the brush head body (see “CLEANING THE BRUSH HEAD
BODY BRUSHES (SWEEPING VERSION)”).
Clean the brush on the side brush head body (see “CLEANING THE SIDE
BRUSH (SCRUBBING VERSION)”).
Clean the side brushes (see “CLEANING THE SIDE BRUSH (SWEEPING
VERSION)”).
Recovery tank
At the end of every working day, empty the recovery tank (see “EMPTYING THE
RECOVERY TANK”).
At the end of every working day, after having emptied the recovery tank, clean the
vacuum system lters (see “CLEANING THE RECOVERY TANK FILTERS”).
At the end of every working day, after emptying the recovery tank, clean the lter
in the detergent solution recycling system (see “CLEANING THE RECYCLE
FILTER (FLR VERSION)”).
At the end of every working day, after having emptied the recovery tank, clean the
vacuum tube (see “CLEANING THE VACUUM TUBE”).
Solution tank
At the end of every working day, empty the solution tank (see “EMPTYING THE
SOLUTION TANK”).
